Air Conditioning Control Assembly: Reassembly

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
NOTE: When installing the air conditioning amplifier assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. Install the air conditioning amplifier assembly as shown in the illustration.

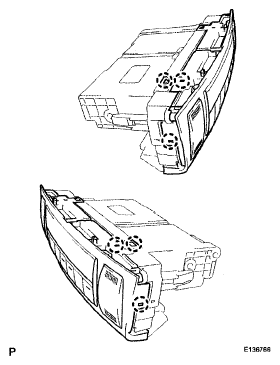

  Fig 1: Identifying Air Conditioning Amplifier Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws as shown in the illustration and install the cover plate.

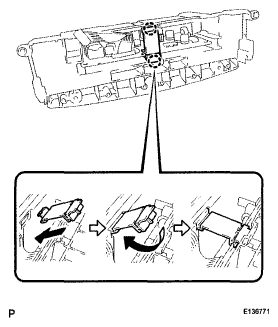

  Fig 2: Identifying Cover Plate Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the air conditioning amplifier assembly with the 2 screws.

  Fig 3: Identifying Air Conditioning Amplifier Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL KNOB
1. Install the heater control knob.

  Fig 4: Identifying Heater Control Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL BASE SUB-ASSEMBLY
1. Connect the connector.

  Fig 5: Identifying Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the heater control base sub-assembly.

  Fig 6: Identifying Heater Control Base Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL HOUSING SUB-ASSEMBLY
1. Engage the 6 claws.

  Fig 7: Identifying Heater Control Housing Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the heater control housing sub-assembly with the 5 screws.

  Fig 8: Identifying Heater Control Housing Sub-Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
