Parts Location

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

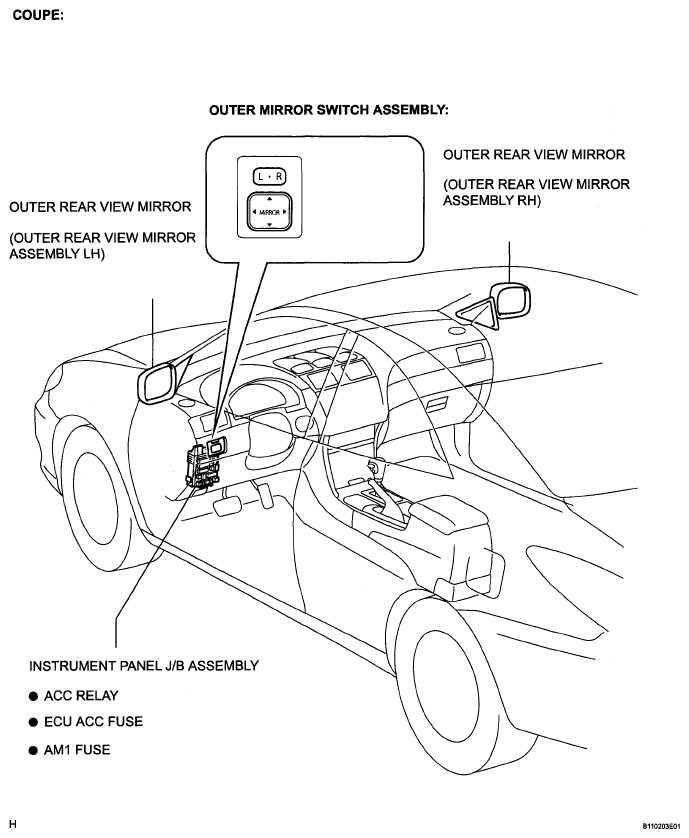

Fig 1: Identifying Power Mirror Control Components Location (1 Of 3)
G05135607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

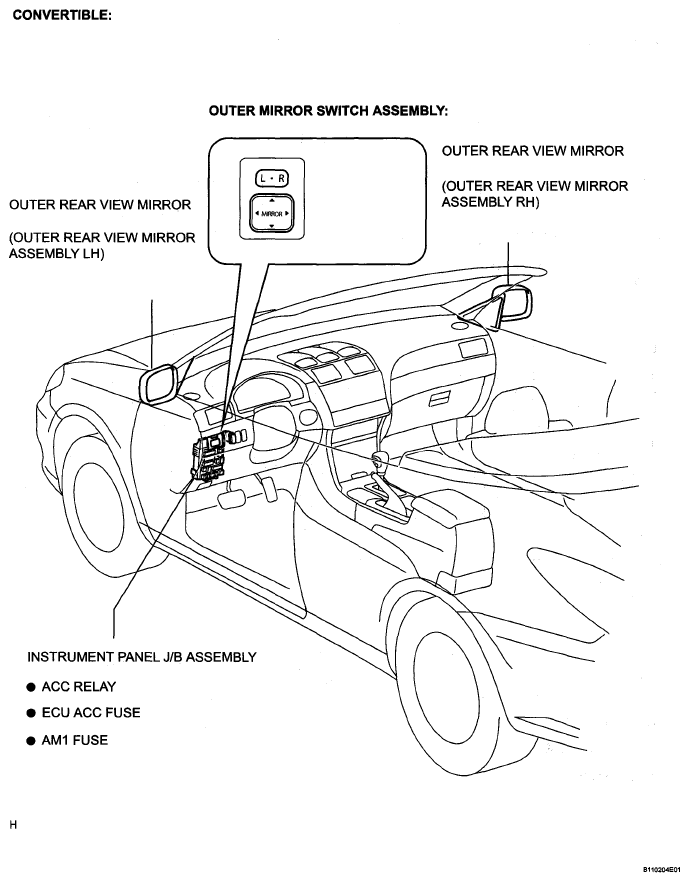

Fig 2: Identifying Power Mirror Control Components Location (2 Of 3)
G05135608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

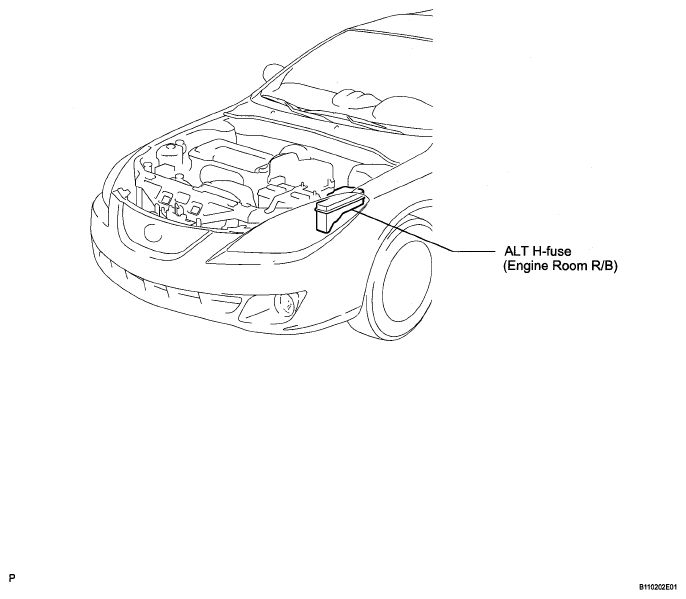

Fig 3: Identifying Power Mirror Control Components Location (3 Of 3)
G05135609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
