Power Mirror Control System: Inspection
WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT OUTER MIRROR SWITCH ASSEMBLY

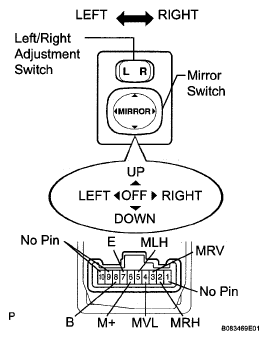

- Select "L" on the left/right adjustment switch: Measure the resistance of the switch.
Standard resistance
OUTER MIRROR SWITCH ASSEMBLY ("L" ON LEFT/RIGHT ADJUSTMENT SWITCH)Terminal Connection Switch Condition Specified Condition 4 (MLV) - 8 (B) 6 (M+) - 7 (E) UP Below 1 Ω 4 (MLV) - 7 (E) 6 (M+) - 8 (B) DOWN Below 1 Ω 5 (MLH) - 8 (B) 6 (M+) - 7 (E) LEFT Below 1 Ω 5 (MLH) - 7 (E) 6 (M+) - 8 (B) RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- Select "R" on the left/right adjustment switch: Measure the resistance of the switch.
Standard resistance
OUTER MIRROR SWITCH ASSEMBLY ("R" ON LEFT/RIGHT ADJUSTMENT SWITCH)Terminal Connection Switch Condition Specified Condition 3 (MRV) - 8 (B) 6 (M+) - 7 (E) UP Below 1 Ω 3 (MRV) - 7 (E) 6 (M+) - 8 (B) DOWN Below 1 Ω 2 (MRH) - 8 (B) 6 (M+) - 7 (E) LEFT Below 1 Ω 2 (MRH) - 7 (E) 6 (M+) - 8 (B) RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- Select "L" on the left/right adjustment switch: Measure the resistance of the switch.
