Outer Rear View Mirror: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Outer Rear View Mirror Components (1 Of 2)
G05135629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

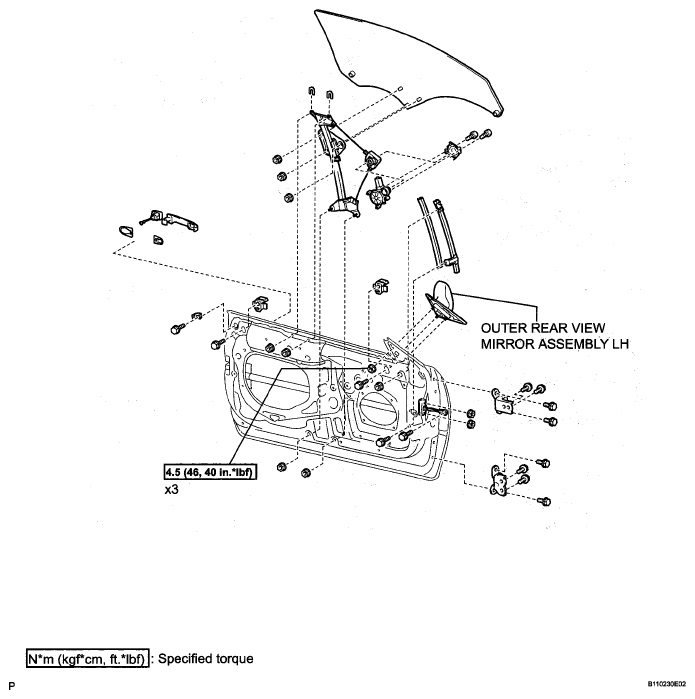

Fig 2: Outer Rear View Mirror Replacement Components With Torque Specifications (2 Of 2)
G05135630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
