Inner Rear View Mirror: Inspection

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INNER REAR VIEW MIRROR ASSEMBLY
1. without microphone:
  Inspect operation of the electrochromic inner rear view mirror.
  1. Connect the positive (+) lead from the battery terminal 4 and the negative (-) lead to terminal 1.
  2. Attach black colored tape to the forward sensor to prevent it from sensing.
  3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
    Standard:

    Mirror surface changes from bright to dark.

    If the result is not as specified, replace the mirror assembly.

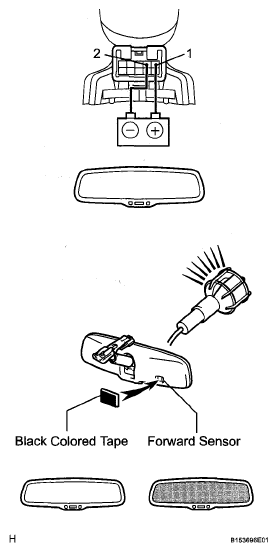

    Fig 1: Inspecting Operation Of Electrochromic Inner Rear View Mirror (Without Microphone)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. with microphone:
  Inspect operation of the electrochromic inner rear view mirror.
  1. Connect the positive (+) lead from the battery terminal 1 and the negative (-) lead to terminal 2.
  2. Attach black colored tape to the forward sensor to prevent it from sensing.
  3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
    Standard:

    Mirror surface changes from bright to dark.

    If the result is not as specified, replace the mirror assembly.

    Fig 2: Inspecting Operation Of Electrochromic Inner Rear View Mirror (With Microphone)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
