Front Wiper Motor: Components

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

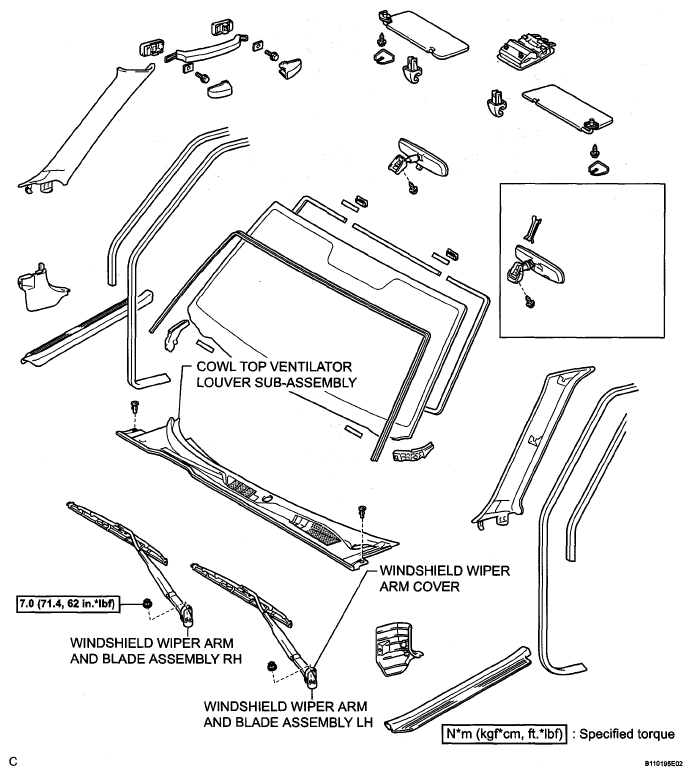

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications (1 Of 2)
G05132117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

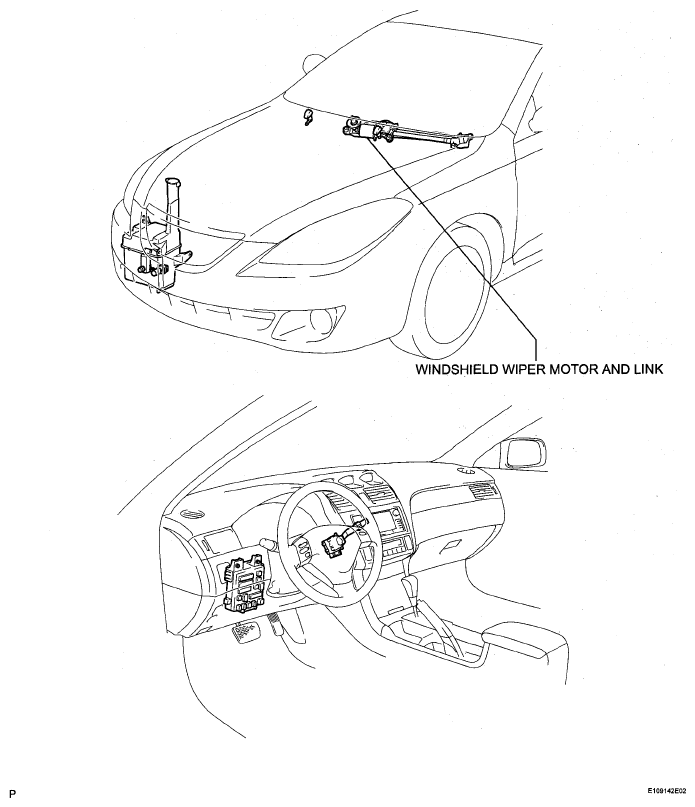

Fig 2: Identifying Front Wiper Motor Components Location (2 Of 2)
G05132118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
