Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK OPERATION OF SPEEDOMETER
1. Drive the vehicle and check if the function of the speedometer on the combination meter is normal.
  OK: Actual vehicle speed and the speed indicated on the speedometer are the same.

  HINT:
  - The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.
  - The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, refer to "ON-VEHICLE INSPECTION " in the meter/gauge system (See DIAGNOSTIC TROUBLE CODE CHART ).
NG: Go TO METER / GAUGE SYSTEM

OK: Go to Next Step
INSPECT STEREO COMPONENT AMPLIFIER
1. Disconnect the stereo component amplifier connector S11.
2. Measure the voltage.
  1. Jack up either one of the drive wheels.
  2. Move the shift lever to the neutral position.
  3. Turn the ignition switch to the ON position.

    Fig 1: Identifying S11 Stereo Component Amplifier Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Measure the voltage between terminal SPD of the stereo component amplifier and body ground when the drive wheels are turned slowly.
    OK: Voltage pulses as shown in the illustration.
NG: Go to step 3

Fig 2: Voltage Pulses For SPD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE STEREO COMPONENT AMPLIFIER

CHECK HARNESS AND CONNECTOR (COMBINATION METER - STEREO COMPONENT AMPLIFIER)

Disconnect the stereo component amplifier connector S11 and combination meter connector C7.

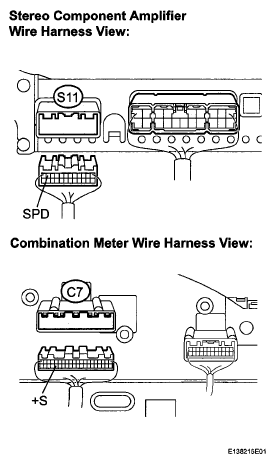

Fig 3: Identifying Stereo Component Amplifier S11 And Combination Meter Connector C7
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value (s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
SPD-+S	Ignition switch OFF	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (COMBINATION METER - STEREO COMPONENT AMPLIFIER)

Disconnect the stereo component amplifier connector S11 and combination meter connector C7.

Fig 4: Identifying Stereo Component Amplifier S11 And Combination Meter Connector C7
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value (s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
SPD - Body ground	Ignition switch OFF	10 kΩ or higher

HINT:

If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector; or an ECU that is connected to the SPD signal wire.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR CHECK EACH ECU

OK: REPLACE COMBINATION METER
