Suspension System: Components

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

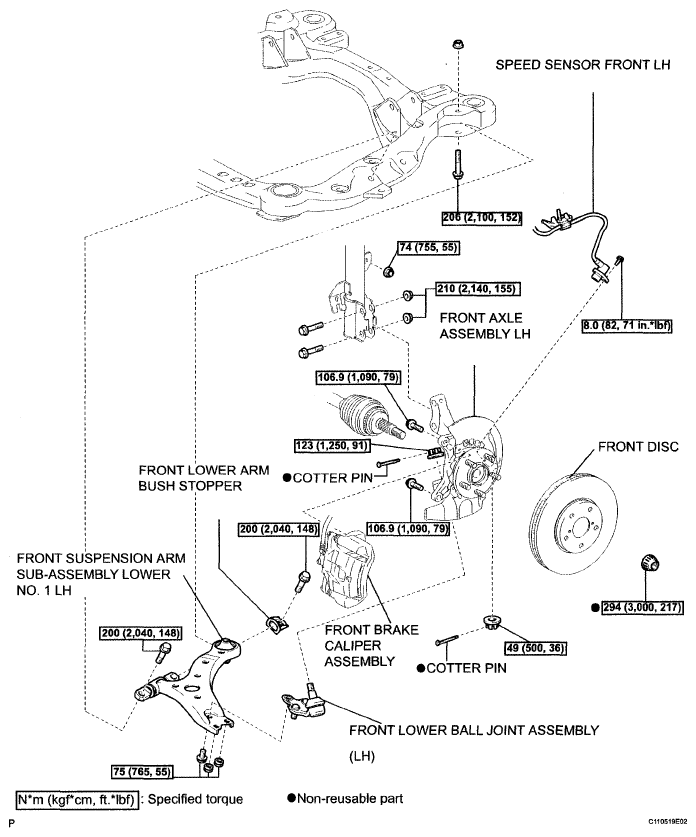

Fig 1: Suspension System Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

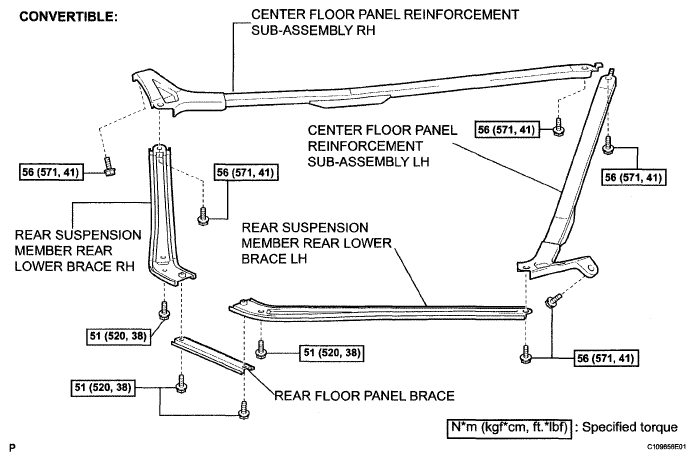

Fig 2: Suspension System Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

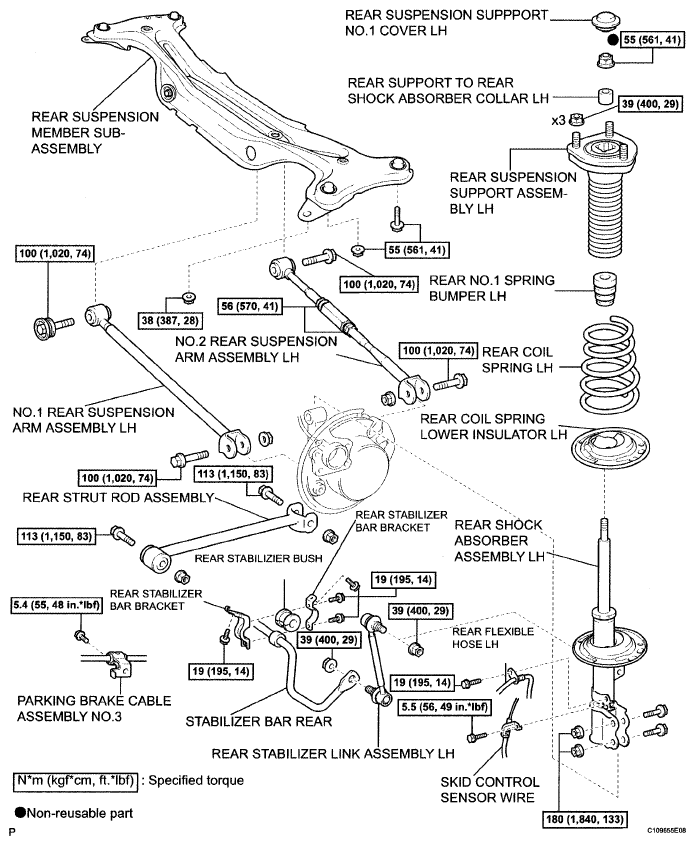

Fig 3: Suspension System Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

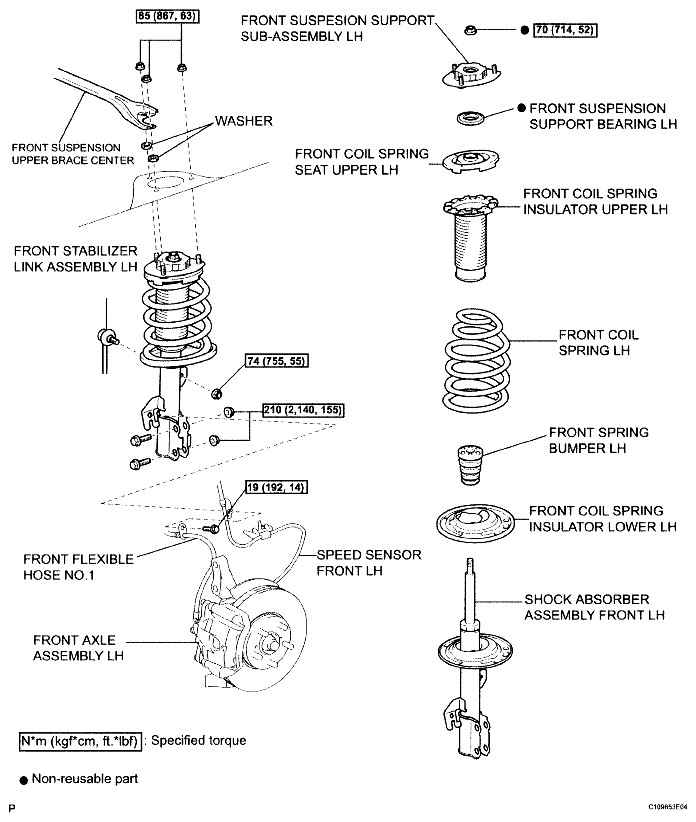

Fig 4: Suspension System Replacement Components With Torque Specifications (4 Of 5)

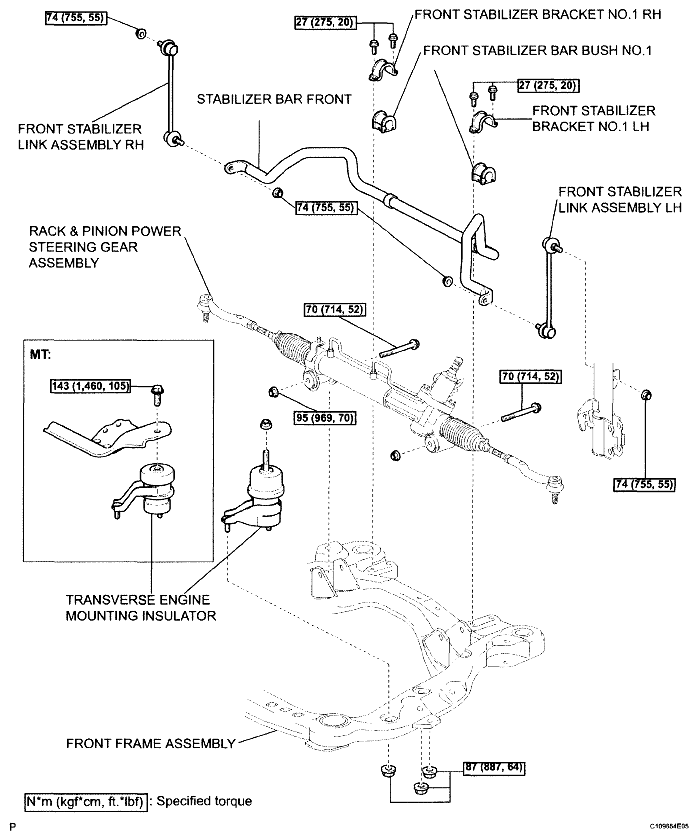

Fig 5: Suspension System Replacement Components With Torque Specifications (5 Of 5)
