Section 36 (Suspension System)
>>
Front Stabilizer Bar
>>
Components
Front Stabilizer Bar: Components
WARNING:
This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Stabilizer Bar Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

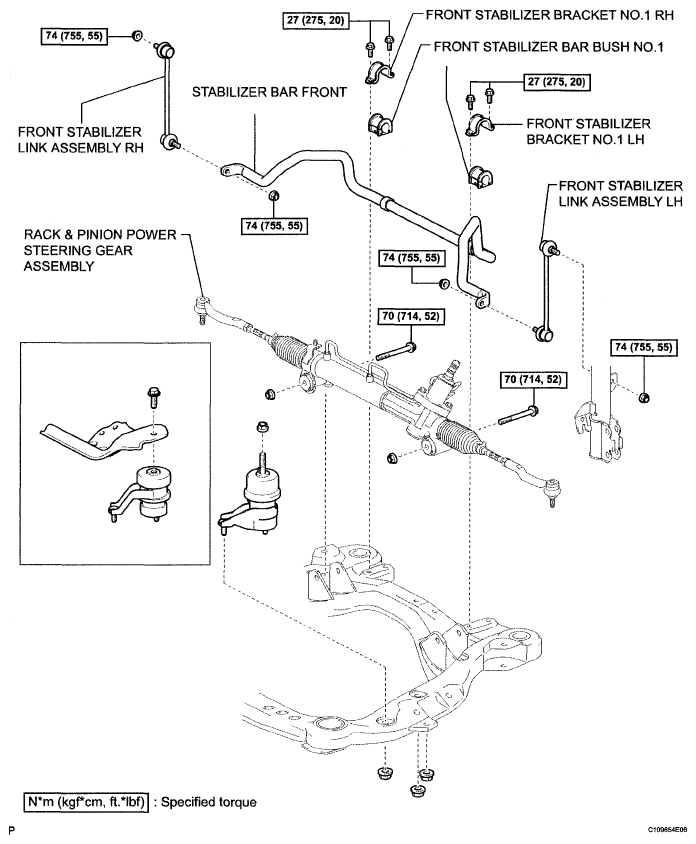

Fig 4: Front Stabilizer Bar Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
