Terminals Of Ecu

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. OCCUPANT CLASSIFICATION ECU

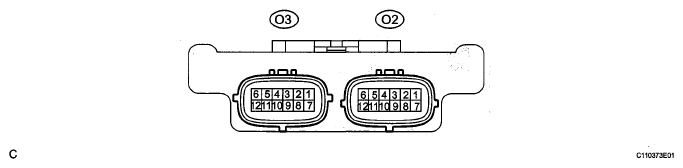

    Fig 1: Identifying Occupant Classification ECU Connector Terminals
    G05131620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ECU REFERENCE

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    +B (O2-1) - GND (O2-3) W-R - W-B Power source (ECU-B Fuse) Always 10 to 14 V
    DIA (O2-2) - GND (O2-3) W-W-B Diagnosis (DLC3) IG switch ON Pulse generation
    GND (O2-3) - Body ground W-B - Body ground Ground Always Below 1 Ω
    FSR- (O2-4) - GND (O2-3) G-B-W-B((1))
    G-R - W-B ((2))    		 Center airbag sensor assembly communication line (-) Always Below 1 Ω
    BGND (O2-5) - GND (O2-3) GR - W-B((1))
    B - W-B ((2))    		 Passenger side buckle switch ground line Always Below 1 Ω
    IG (O2-7) - GND (O2-3) B-O - W-B Power source (IG2 Fuse) IG switch ON 10 to 14 V
    FSR+ (O2-8) - FSR- (O2-4) G-R - G-B((1))
    G-B - G-R ((2))    		 Center airbag sensor assembly communication line IG switch ON Pulse generation
    BSW (O2-9) - BGND (O2-5) B - GR((1))
    B-L - B ((2))    		 Passenger side buckle switch line Buckle switch ON
    Buckle switch OFF    		 Pulse generation
    SGD1 (O3-1) - GND (O2-3) G - W-B Occupant classification sensor front LH ground line Always Below 1 Ω
    SGD2 (O3-2) - GND (O2-3) O - W-B Occupant classification sensor front RH ground line Always Below 1 Ω
    SGD3 (O3-3) - GND (O2-3) W - W-B Occupant classification sensor rear LH ground line Always Below 1 Ω
    SGD4 (O3-4) - GND (O2-3) BR - W-B Occupant classification sensor rear RH ground line Always Below 1 Ω
    SVC3 (O3-5) - SGD3 (O3-3) GR - W Occupant classification sensor rear LH power supply line IG switch ON, load occupant classification sensor rear LH 4.5 to 5.1 V
    SVC4 (O3-6) - SGD4 (O3-4) V - BR Occupant classification sensor rear RH power supply line IG switch ON, load occupant classification sensor rear RH 4.5 to 5.1 V
    SIG1 (O3-7) - SGD1 (O3-1) SB - G Occupant classification sensor front LH signal line IG switch ON, load occupant classification sensor front LH 0.2 to 4.7 V
    SIG2 (O3-8) - SGD2 (O3-2) L - O Occupant classification sensor front RH signal line IG switch ON, load occupant classification sensor front RH 0.2 to 4.7 V
    SIG3 (O3-9) - SGD3 (O3-3) Y - W Occupant classification sensor rear LH signal line IG switch ON, load occupant classification sensor rear LH 0.2 to 4.7 V
    SIG4 (O3-10) - SGD4 (O3-4) R - BR Occupant classification sensor rear RH signal line IG switch ON, load occupant classification sensor rear RH 0.2 to 4.7 V
    SVC1 (O3-11) - SGD1 (O3-1) R - G Occupant classification sensor front LH power supply line IG switch ON, load occupant classification sensor front LH 4.5 to 5.1V
    SVC2 (O3-12) - SGD2 (O3-2) W - O Occupant classification sensor front RH power supply line IG switch ON, load occupant classification sensor front RH 4.5 to 5.1 V
    (1) Coupe
    (2) Convertible
