Section 114 (Supplemental Restraint System)
>>
Occupant Classification System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

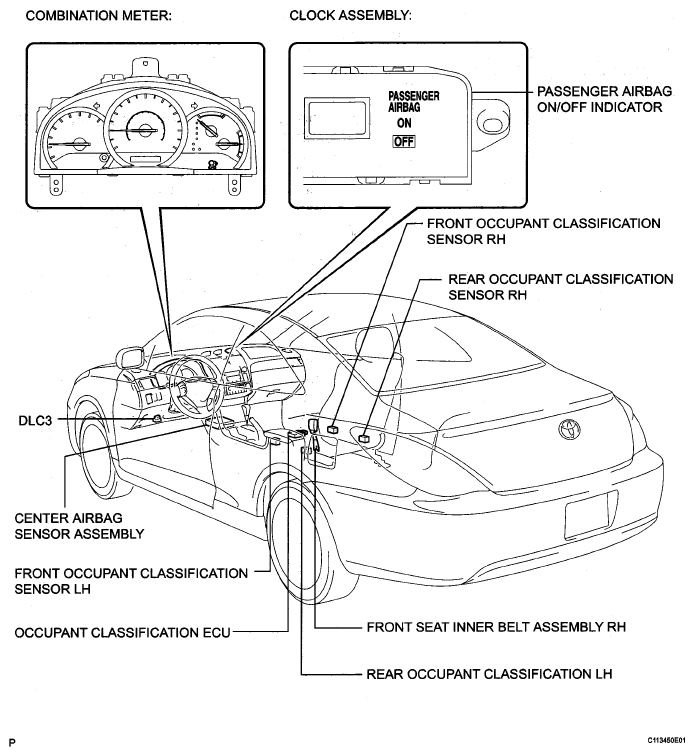

Fig 1: Identifying Occupant Classification System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
