Parts Location

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

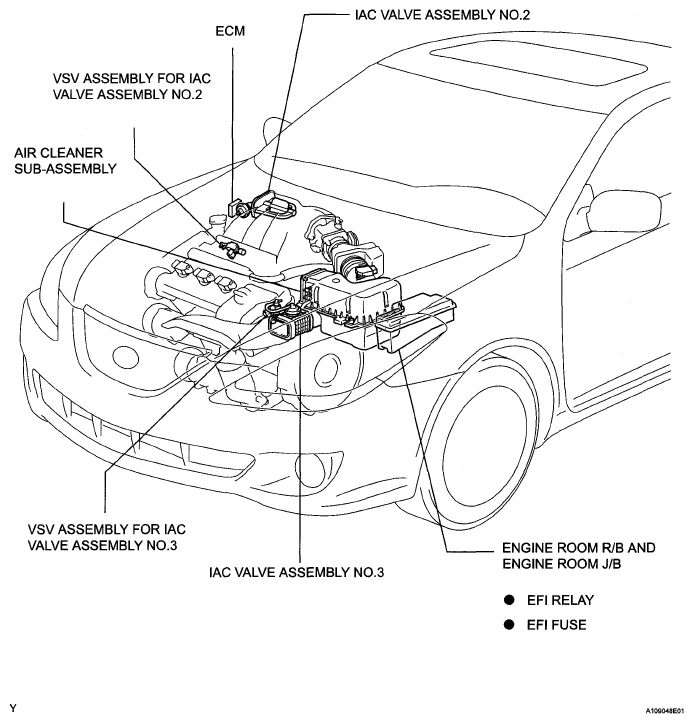

Fig 1: Identifying Intake Air Control System Components Location
G05134603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
