Brake Warning Light Circuit: Wiring Diagram

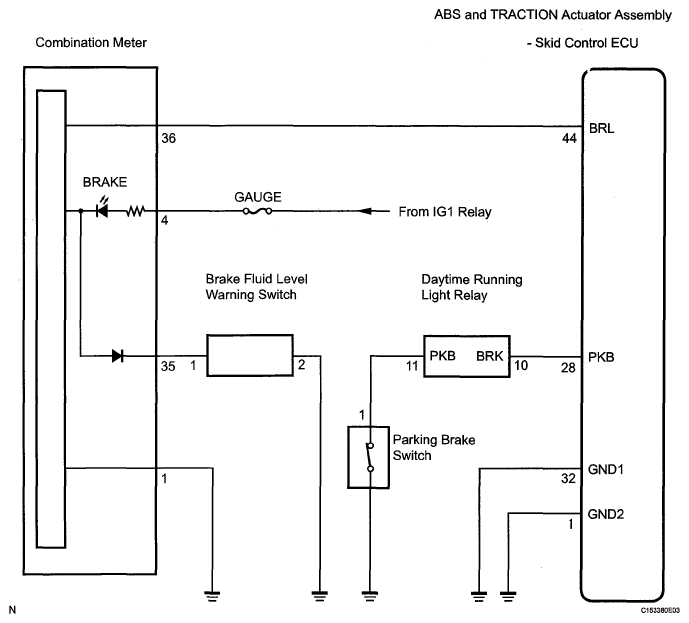

Fig 1: Brake Warning Light - Wiring Diagram

G05590473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
