Valve Body Assembly: Components

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 3)
G05193591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

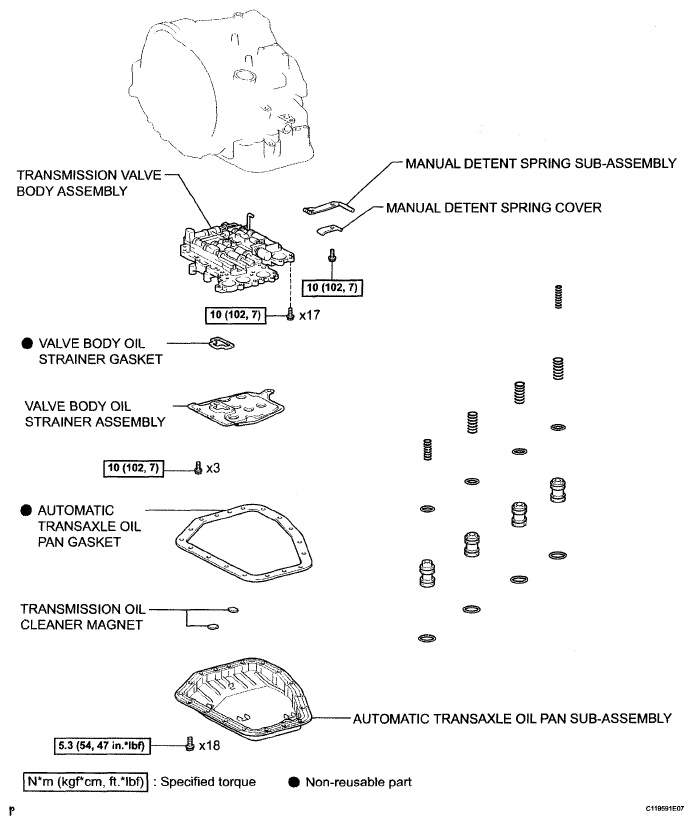

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G05193592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

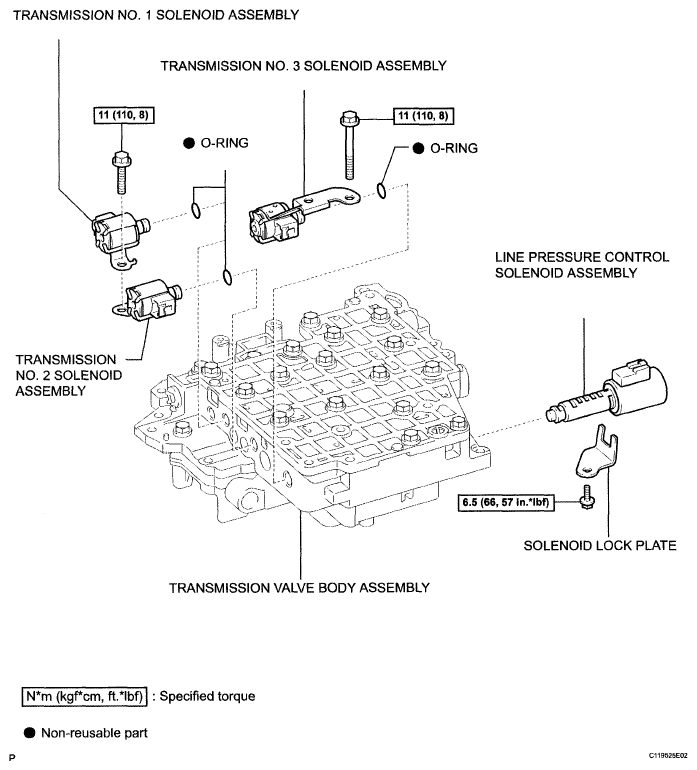

Fig 3: Identifying Valve Body Assembly Replacement Components With Torque Specification (3 Of 3)
G05193593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
