UNDERDRIVE Clutch: Components

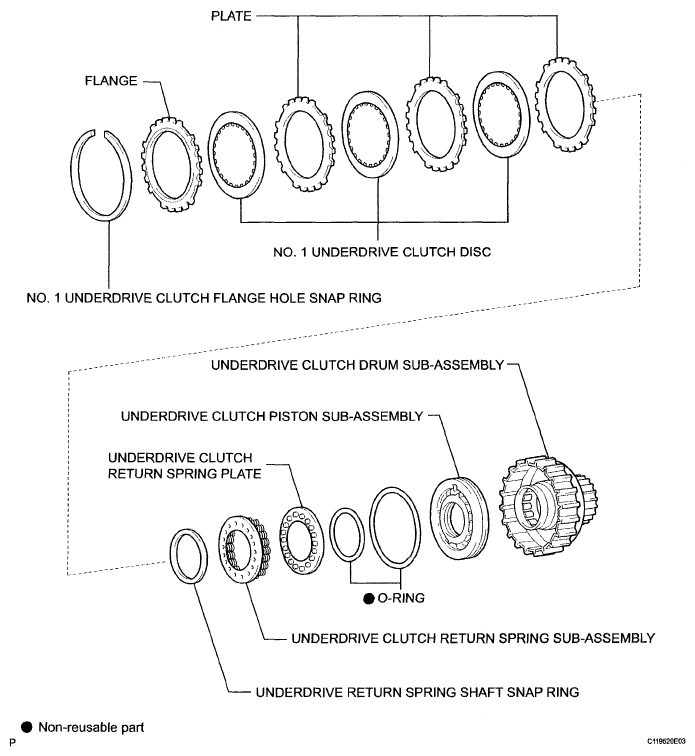

Fig 1: Identifying Underdrive Clutch Components
G05194119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
