Transmission Wire: Components

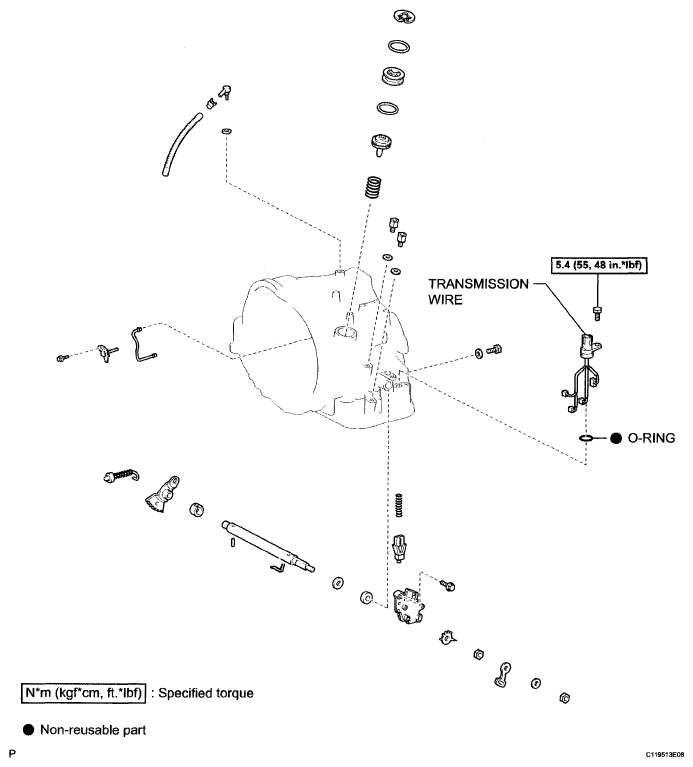

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specification (1 Of 2)
G05193587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G05193588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
