Floor Shift Assembly: Reassembly

INSTALL NO.1 SHIFT LEVER INSERT
INSTALL SHIFT LOCK CONTROL UNIT ASSEMBLY
1. Install the shift lock control unit assembly and toggle lever support pin.
  NOTE: Work so as not to damage the stopper position.

  Fig 1: Identifying Toggle Lever Support Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease on the shift lock release spring and shift lock release button.
2. Install the shift lock release button and shift lock release spring to the position indicator housing lower.
  HINT:

  Fit the claws securely.
INSTALL LOWER POSITION INDICATOR HOUSING
1. Install the lower position indicator housing.
  HINT:

  Fit the claws securely.

  Fig 3: Identifying Lower Position Indicator Housing Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover.

  Fig 4: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONTROL POSITION INDICATOR PLATE
1. Install the position indicator plate to the upper position indicator housing.

  Fig 5: Identifying Control Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER POSITION INDICATOR HOUSING
1. Install the upper position indicator housing.
  HINT:

  Fit the claws securely.

  Fig 6: Identifying Upper Position Indicator Housing Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover to the upper position indicator housing.

  Fig 7: Identifying Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the bulb and cap to the indicator light wire sub-assembly.
2. Install the indicator light wire sub-assembly.
INSTALL SHIFT LEVER KNOB BUTTON
1. Apply MP grease to the spring and shift lever knob button.
2. Install the spring and shift lever knob button.
  HINT:

  Fit the claws securely.
INSTALL TRANSMISSION CONTROL SWITCH
1. Insert the wire harness into the shift lever knob from the part shown by the arrow, and install the transmission control switch to the shift lever knob.
  HINT:

  Fit the claws securely.

  Fig 10: Identifying Wire Harness Insertion Part
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT SHIFT LEVER KNOB COVER
1. Install the shift lever knob cover.

  Fig 11: Identifying Floor Shift Shift Lever Knob Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Install the shift lever knob sub-assembly with the 2 screws.
  HINT:

  Coat the threads of screws with adhesive.

  Sealant:

  Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

  NOTE: Make sure not to catch wire harness.

  Fig 12: Identifying Shift Lever Knob Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 terminals into the indicator light wire connector.

  Fig 13: Identifying Indicator Light Wire Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

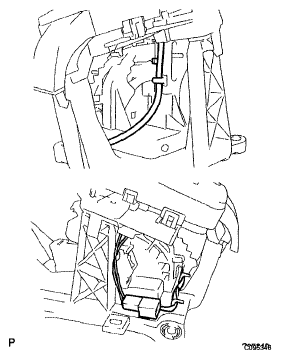

3. Install the wire harness and connector as shown in the illustration.

  Fig 14: Identifying Wire Harness And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
