Radio Receiver: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  2. REMOVE CONSOLE PANEL UPPER  (See REMOVAL )
  3. REMOVE HEATER CONTROL KNOB
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    1. Remove the 4 screws.
    2. Using a screwdriver, disengage the 2 clips and 4 claws, then remove the instrument cluster finish panel sub-assembly center with radio receiver.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connectors.
    Fig 1: Identifying Instrument Cluster Finish Panel Sub-Assembly Center Clips And Claws
    G05196190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO RECEIVER
    1. Disengage the 4 claws and 6 pins.
    2. Remove the radio receiver from the instrument cluster finish panel sub-assembly center.

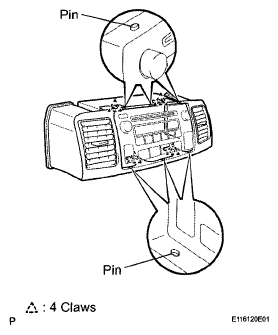

    Fig 2: Identifying Claws And Pins
    G05196191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 4 screws and No. 1 radio bracket.
    Fig 3: Locating No. 1 Radio Bracket Screws
    G05196192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 4 screws and No. 2 radio bracket.
      Fig 4: Locating No. 2 Radio Bracket Screws
      G05196193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
