Headlight Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

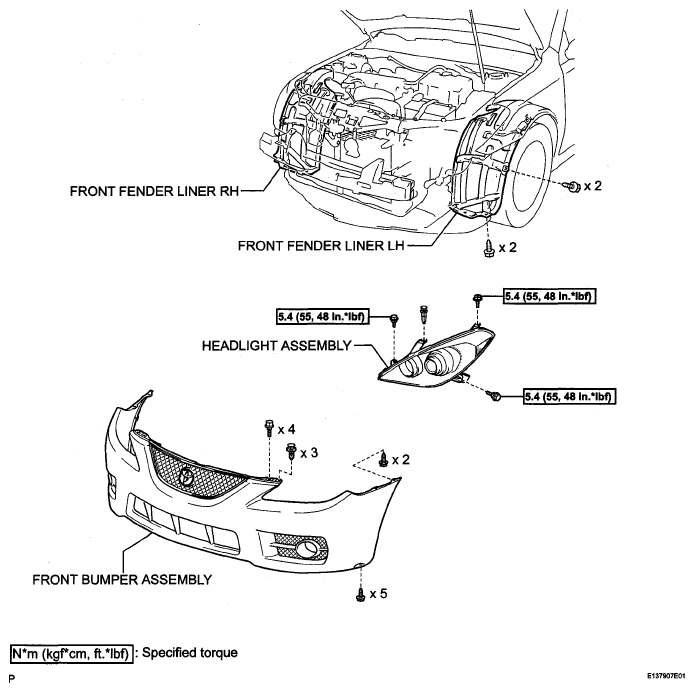

Fig 1: Headlight Replacement Components With Torque Specifications (1 Of 2)
G05132015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

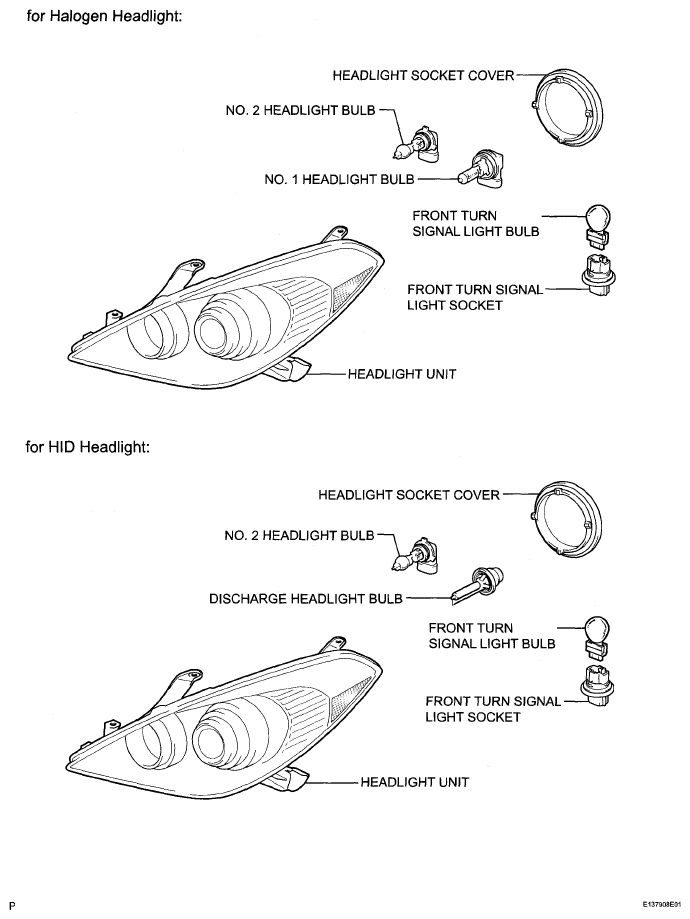

Fig 2: Identifying Headlight Components (2 Of 2)
G05132016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
