System Diagram

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

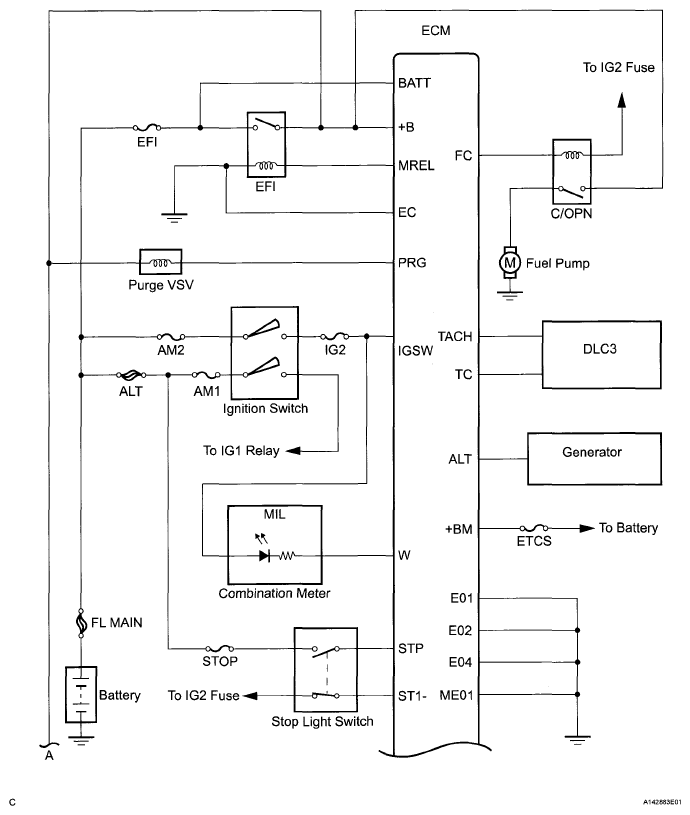

Fig 1: 2AZ-FE Engine Control System Diagram (1 Of 4)
G05127971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

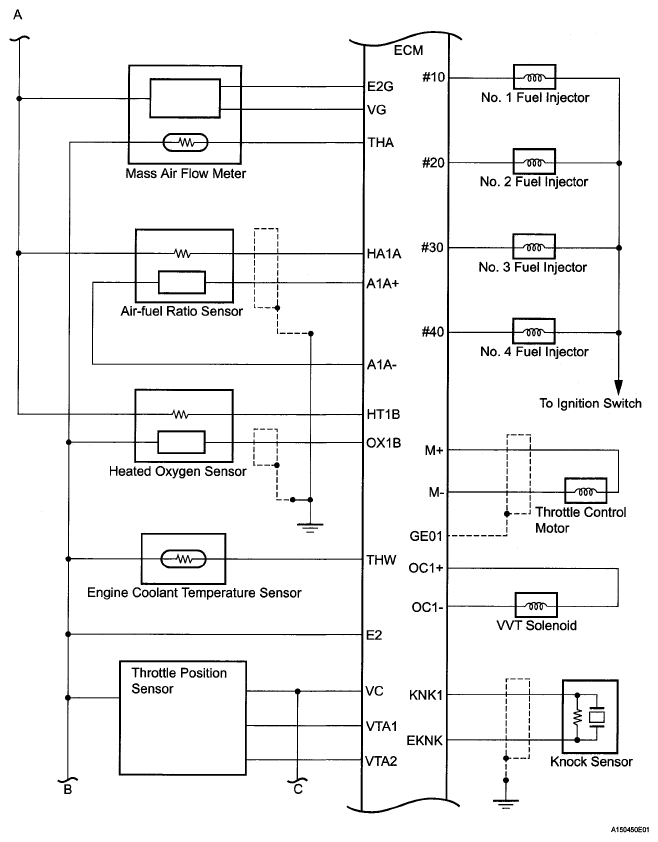

Fig 2: 2AZ-FE Engine Control System Diagram (2 Of 4)
G05127972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

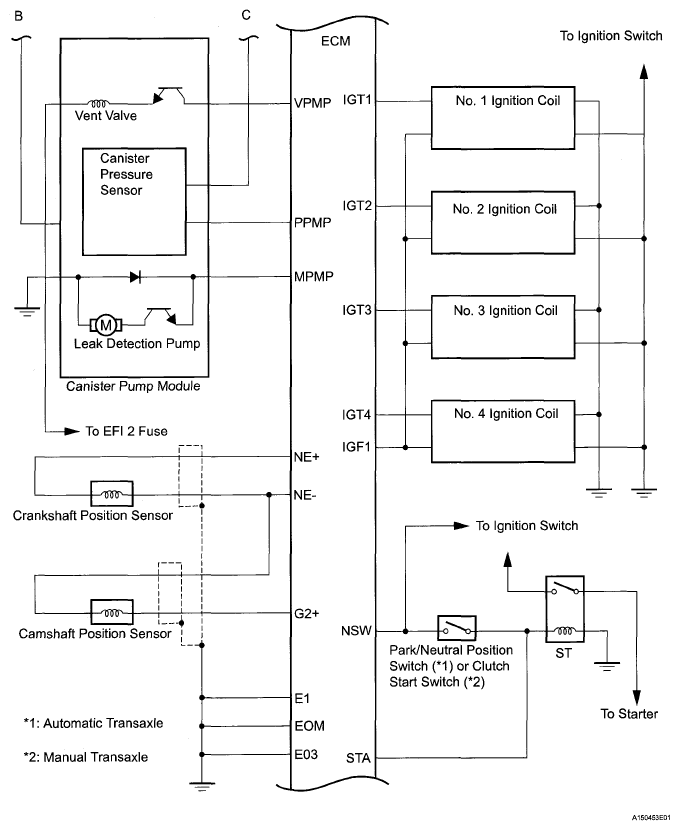

Fig 3: 2AZ-FE Engine Control System Diagram (3 Of 4)
G05127973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

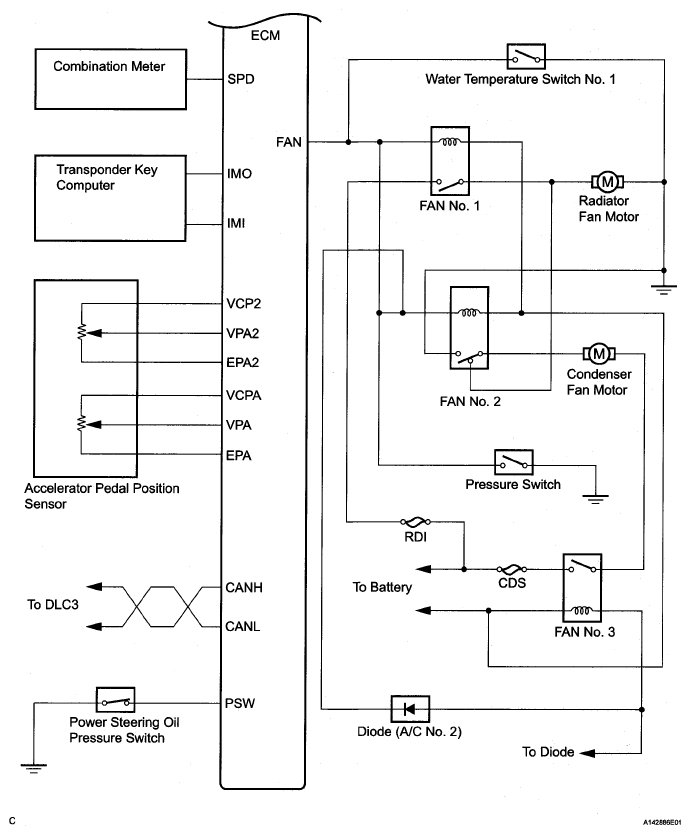

Fig 4: 2AZ-FE Engine Control System Diagram (4 Of 4)
G05127974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
