VVT Sensor: Components

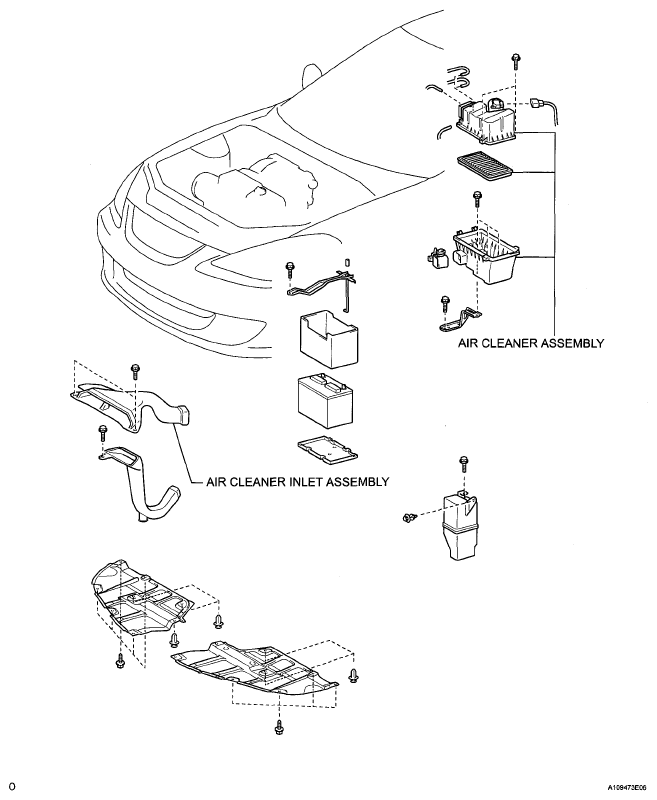

Fig 1: Identifying VVT Sensor Replacement Components (1 Of 2)
G05134759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

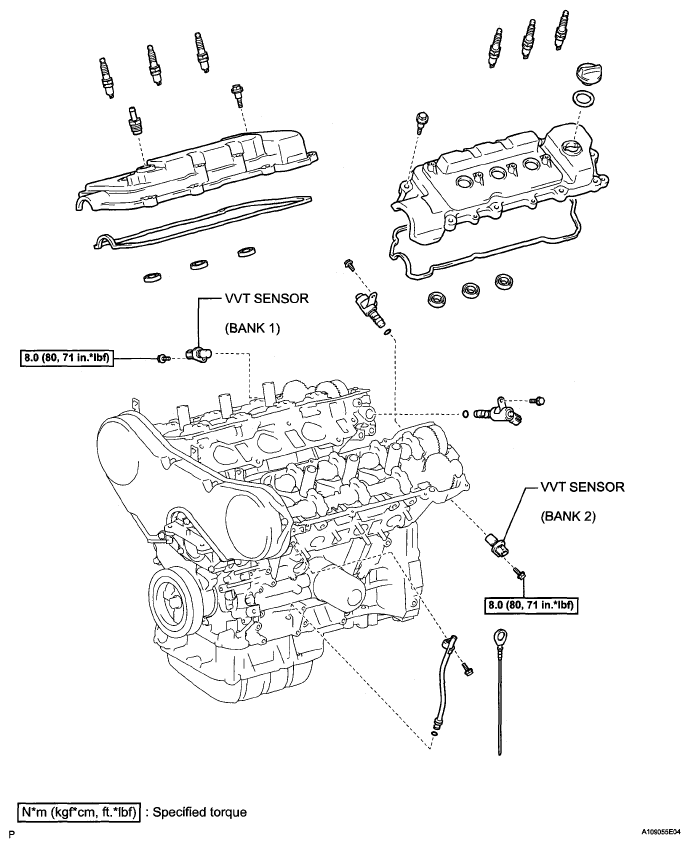

Fig 2: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
G05134760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
