Active Control Engine Mount System: Description

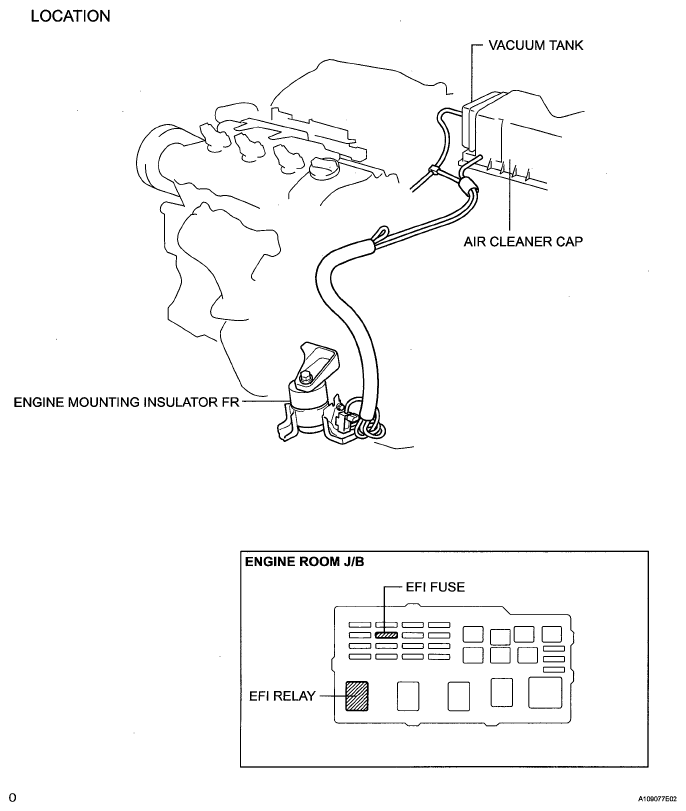

Fig 1: Identifying Active Control Engine Mount System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The Active Control Engine Mount (ACM) system decreases engine vibration at engine idling using the ACM VSV. The VSV is controlled by a pulse signal transmitted to the VSV from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.
