Steering Angle Sensor: Components

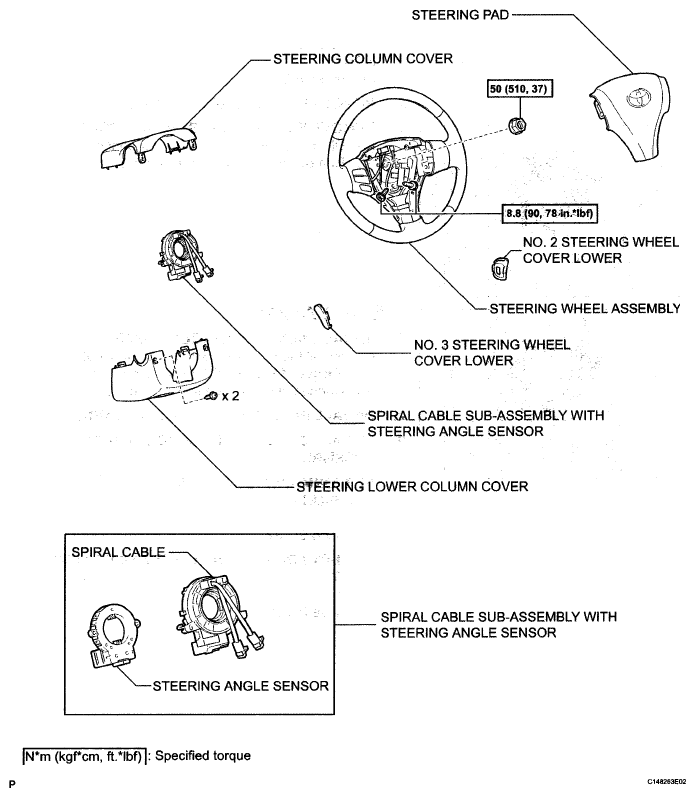

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications

G05131104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
