Home >> Toyota >> 2008 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Skid Control Sensor >> Components

Skid Control Sensor: Components

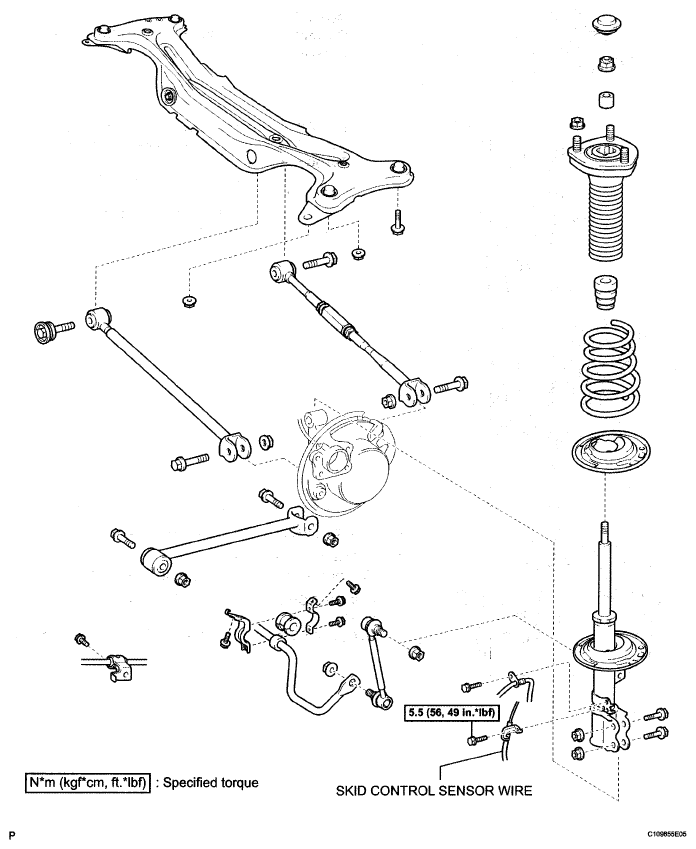

Fig 1: Identifying Skid Control Sensor Replacement Components With Torque Specification (1 Of 2)
G05131089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

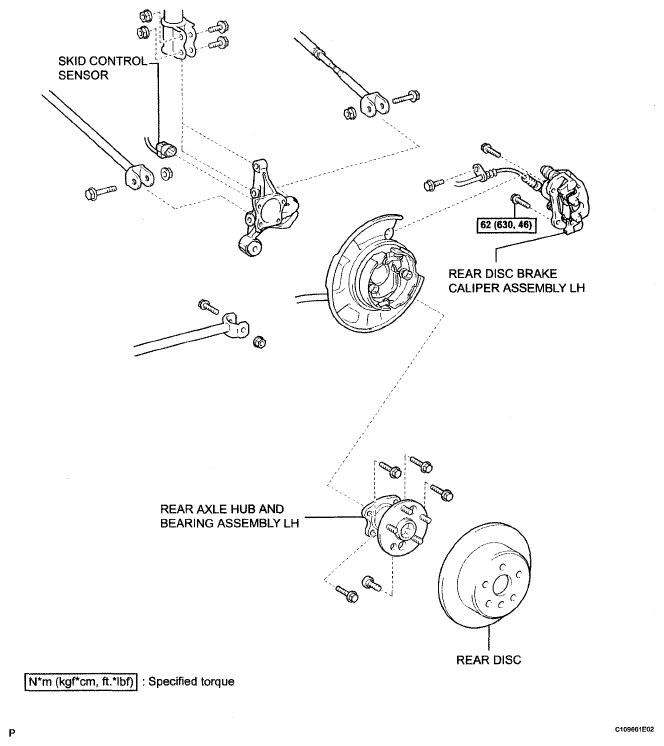

Fig 2: Identifying Skid Control Sensor Replacement Components With Torque Specification (2 Of 2)
G05131090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
