Ignition Coil: Components

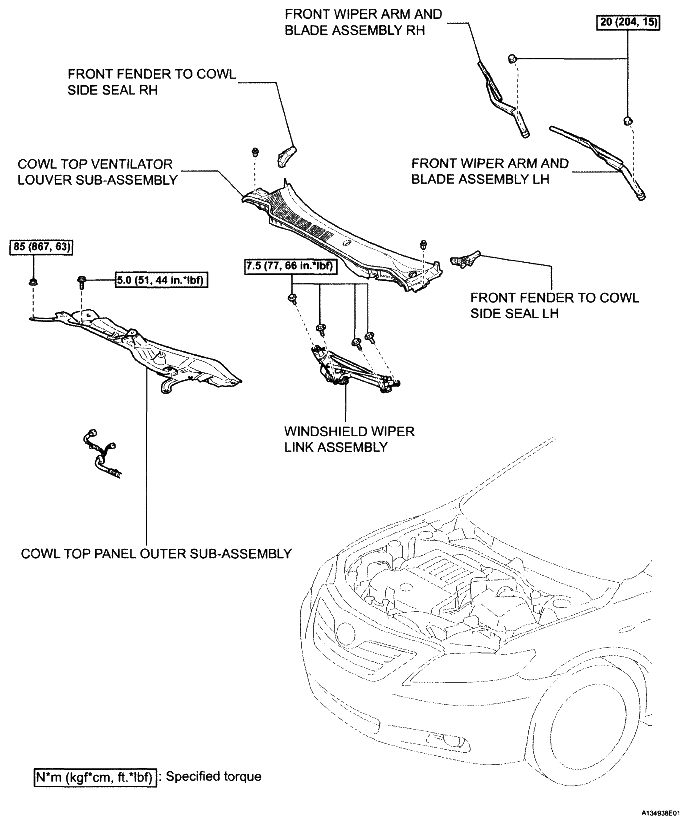

Fig 1: Ignition Coil Replacement Components With Torque Specifications (1 Of 3)
G04975494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition Coil Replacement Components With Torque Specifications (2 Of 3)
G04975495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

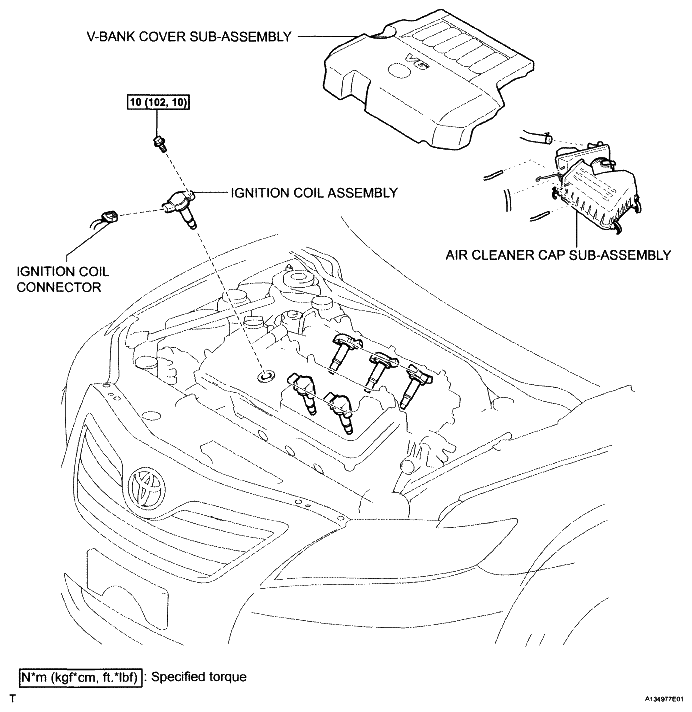

Fig 3: Ignition Coil Replacement Components With Torque Specifications (3 Of 3)
G04975496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
