Home >> Toyota >> 2008 >> Camry CE, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Stabilizer Bar >> Components

Rear Stabilizer Bar: Components

Fig 1: Rear No. 1 Suspension Arm Replacement Components With Torque Specifications (1 Of 4)
G04977765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear No. 1 Suspension Arm Replacement Components With Torque Specifications (2 Of 4)
G04977766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

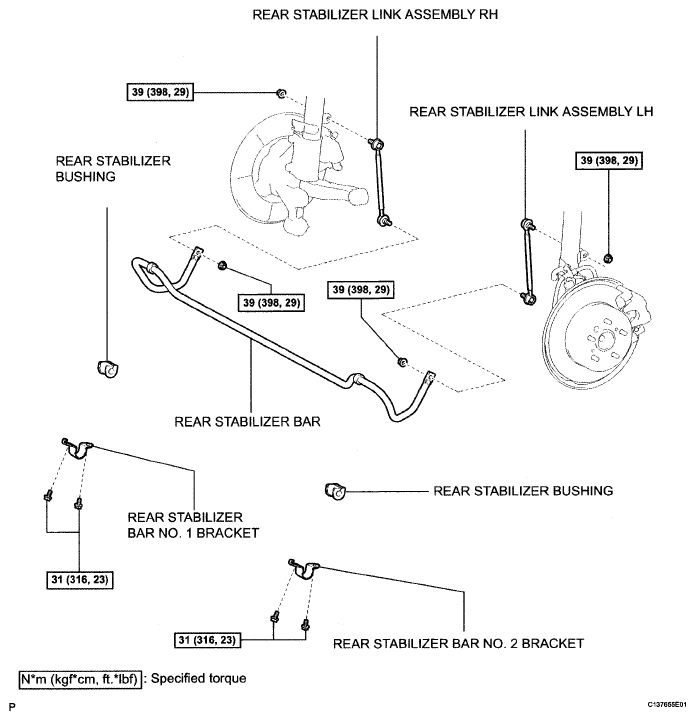

Fig 3: Rear Stabilizer Bar Replacement Components With Torque Specifications (3 Of 3)
G04977797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
