Fuel Sender Gauge Assembly: Components

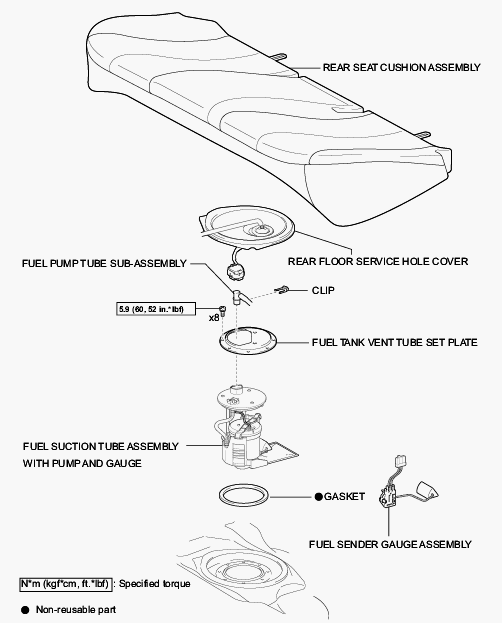

Fig 1: Fuel Tank Replacement Components With Torque Specifications

G00012415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
