Fuel Pump: Components

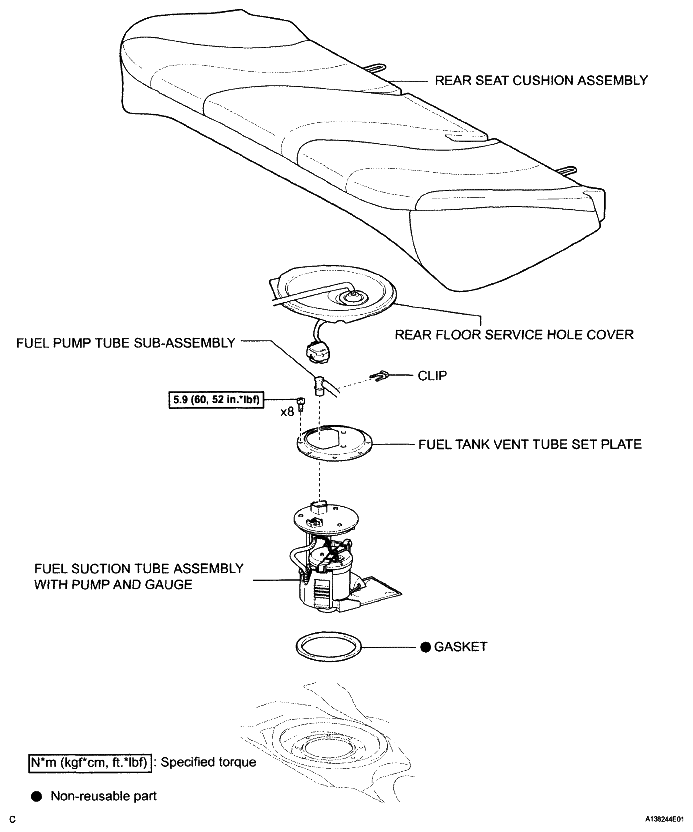

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G04974915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

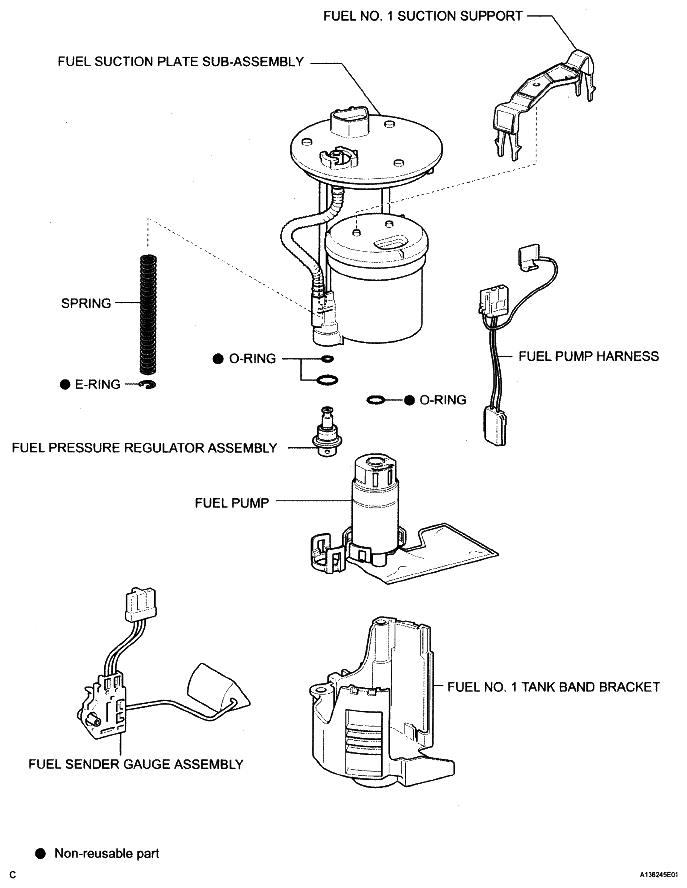

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G04974916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
