Transmission Control Cable: Components

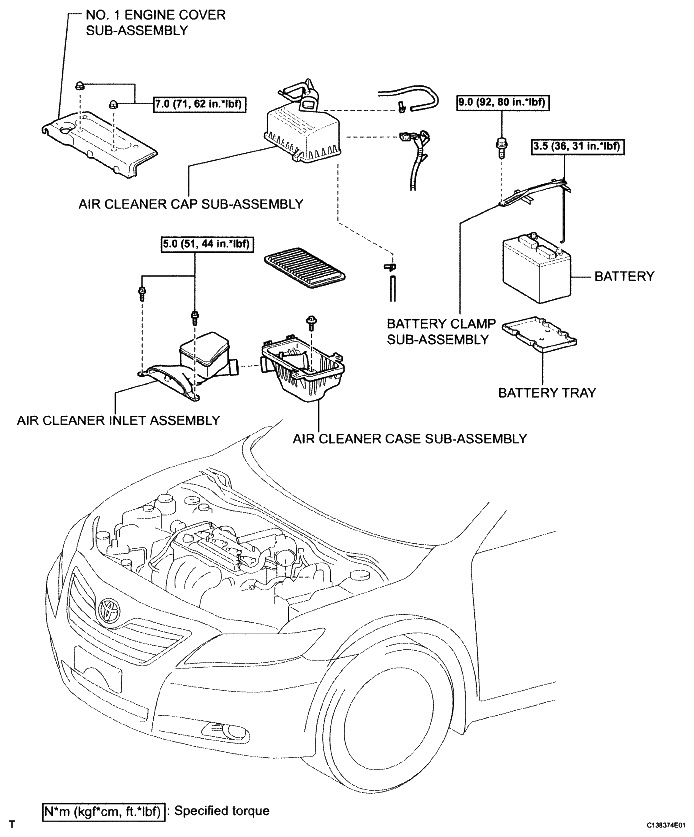

Fig 1: Exploded View Of Transmission Control Cable Components With Torque Specifications (1 Of 2)
G04977184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

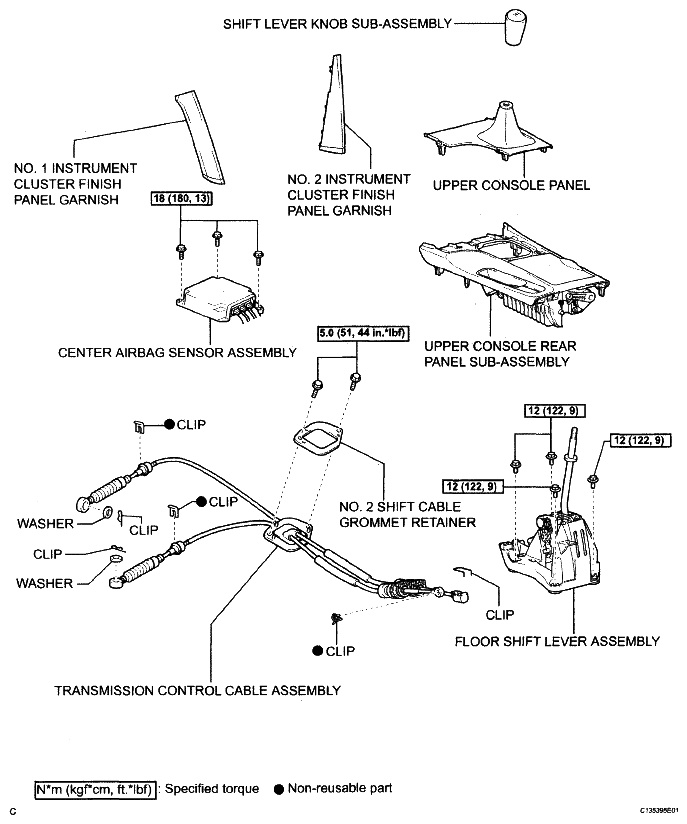

Fig 2: Exploded View Of Transmission Control Cable Components With Torque Specifications (2 Of 2)
G04977185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
