Home >> Toyota >> 2008 >> Camry Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Input Shaft >> Components

Input Shaft: Components

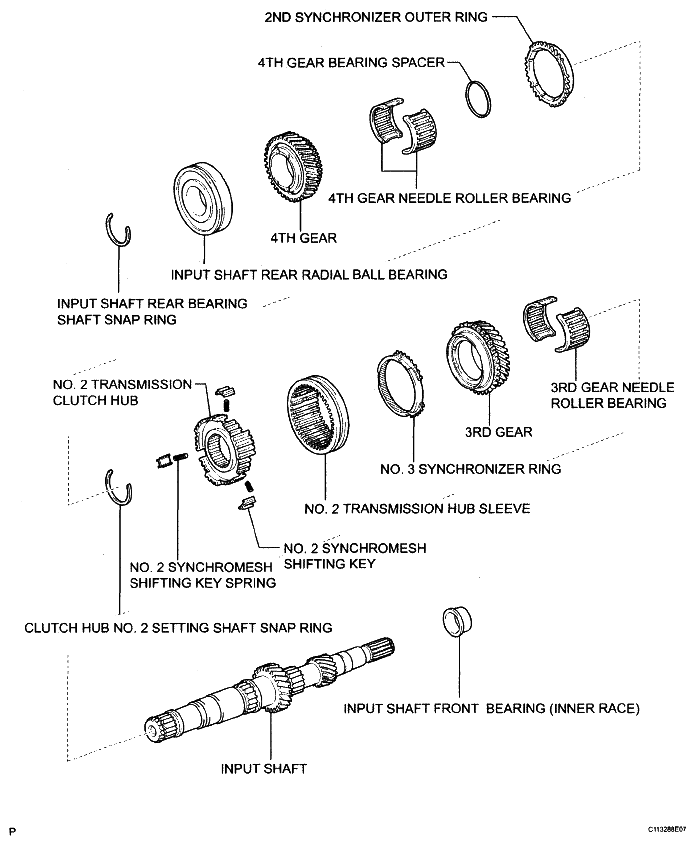

Fig 1: Identifying Input Shaft Components

G04977385

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
