Floor Shift Lever Assembly: Components

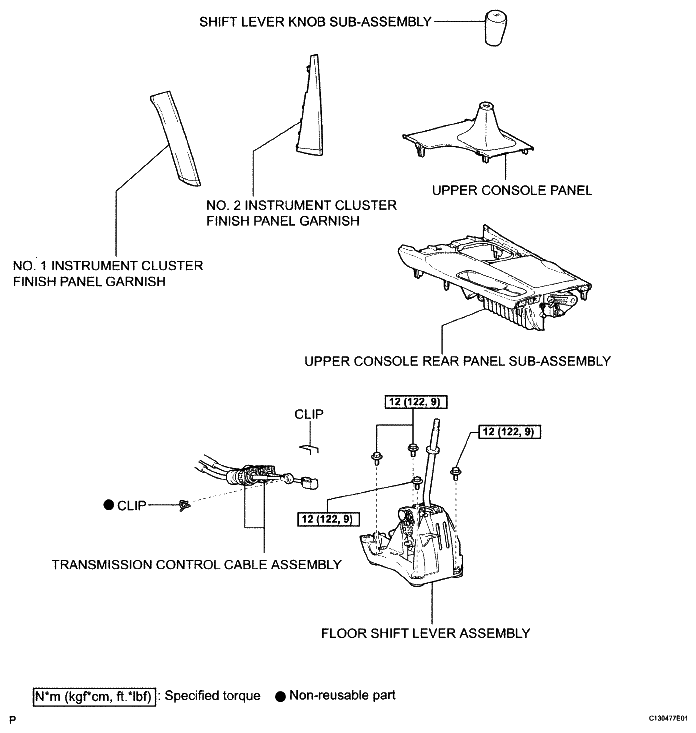

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications

G04977176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
