Camry Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Engine Fuel System (2AZ-FE)
>>
Fuel System
>>
System Diagram
System Diagram

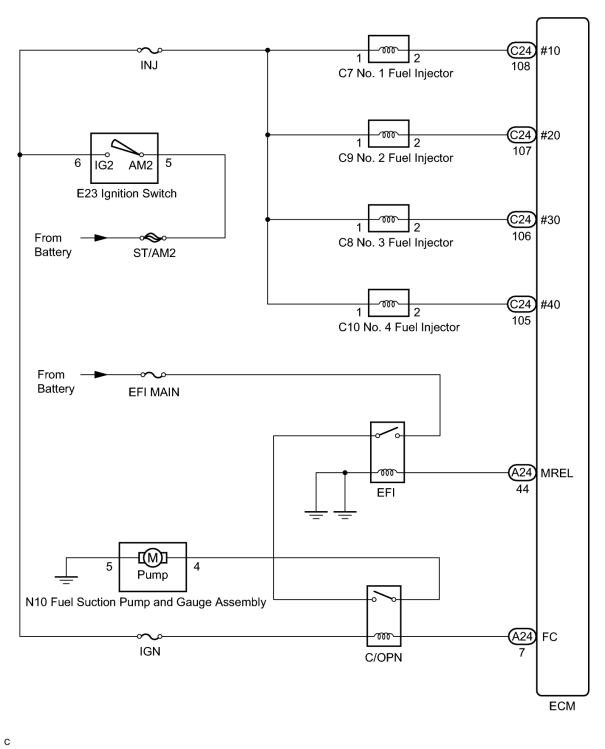

Fig 1: Fuel System Diagram
