Intake Air Control Valve: Components

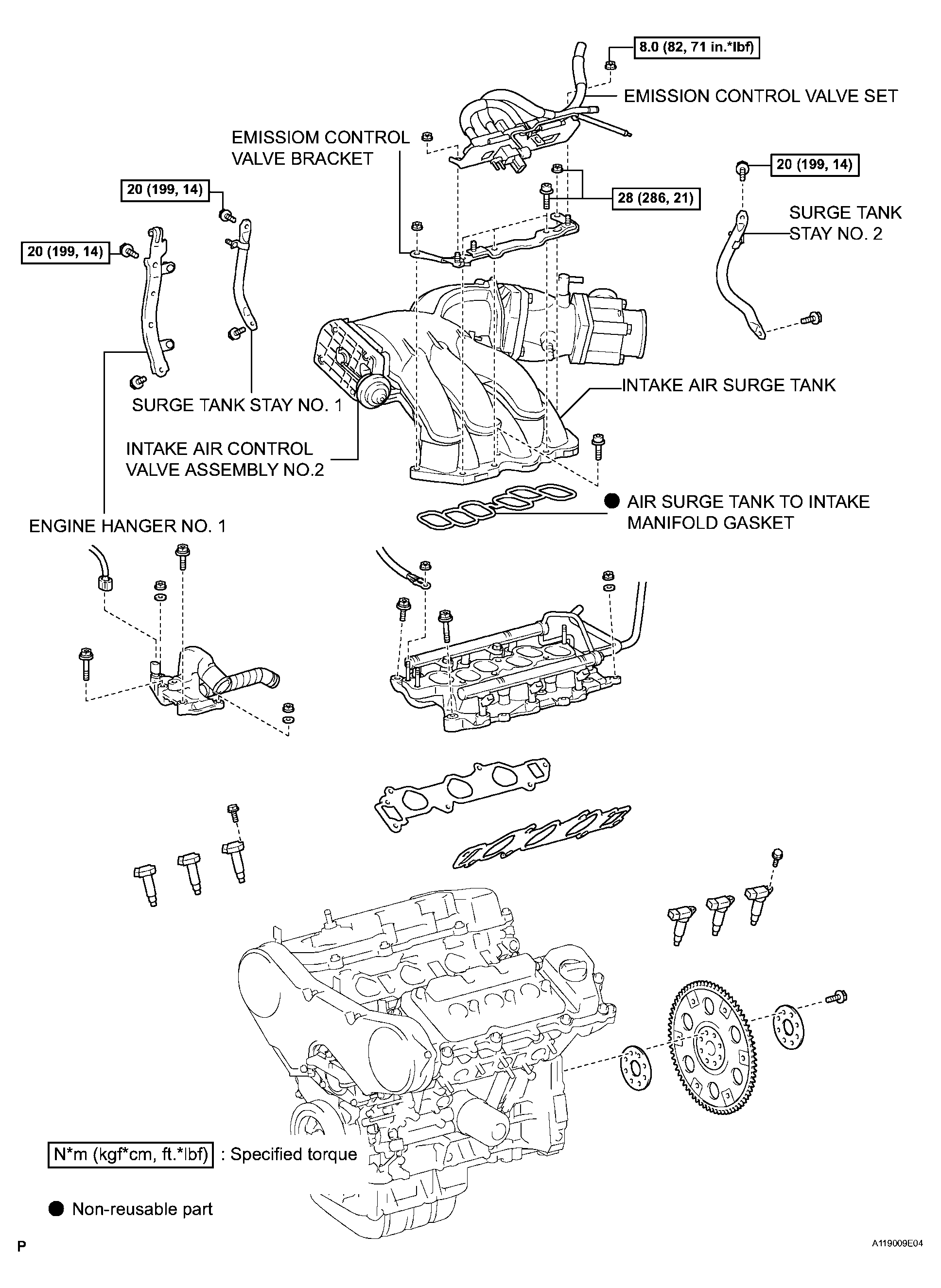

Fig 1: Intake Air Control Valve Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

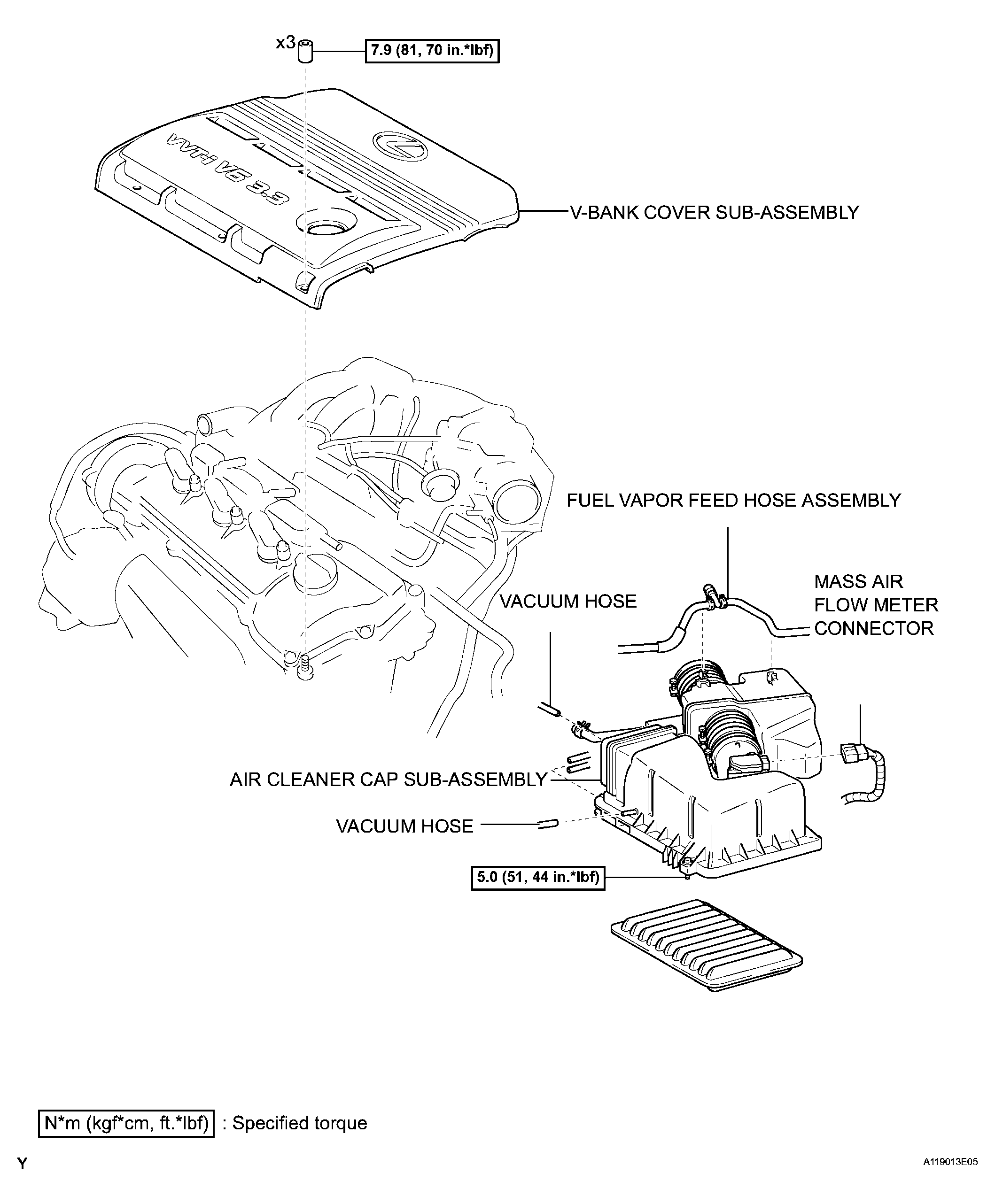

Fig 2: Intake Air Control Valve Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

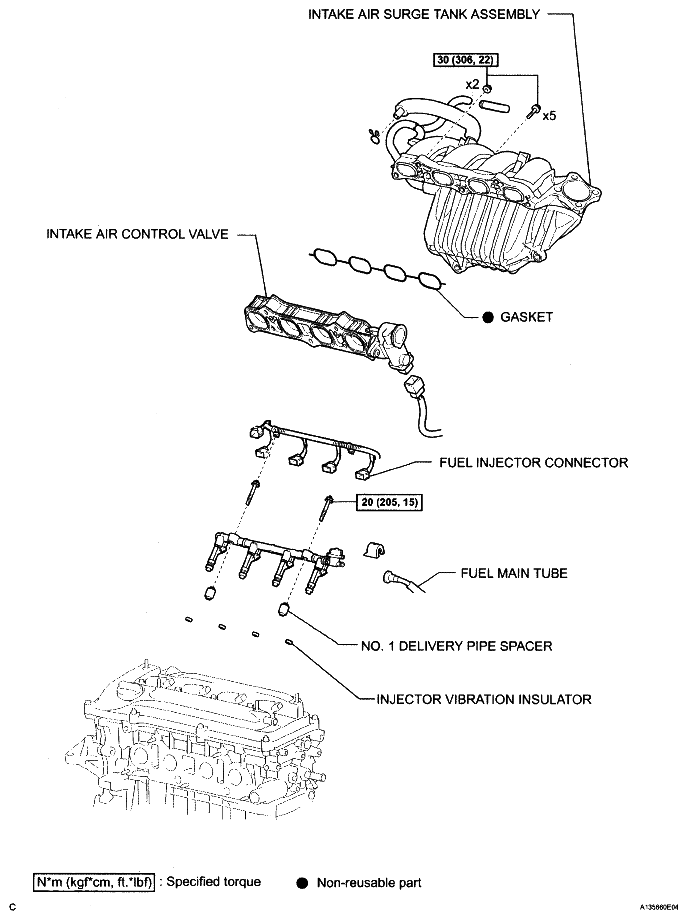

Fig 3: Intake Air Control Valve Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
