Rear Console Box: Components

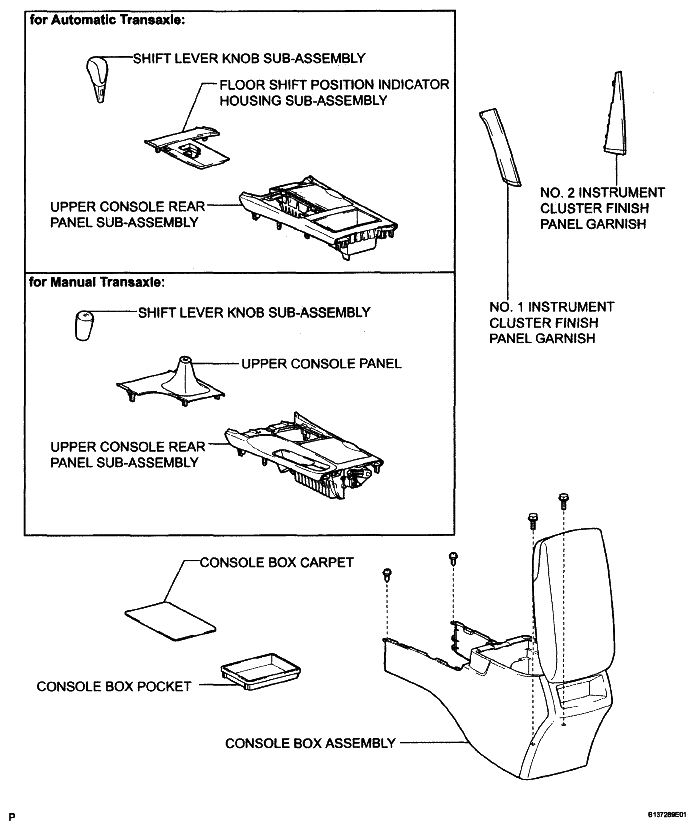

Fig 1: Identifying Rear Console Box Components (1 Of 2)
G04981378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

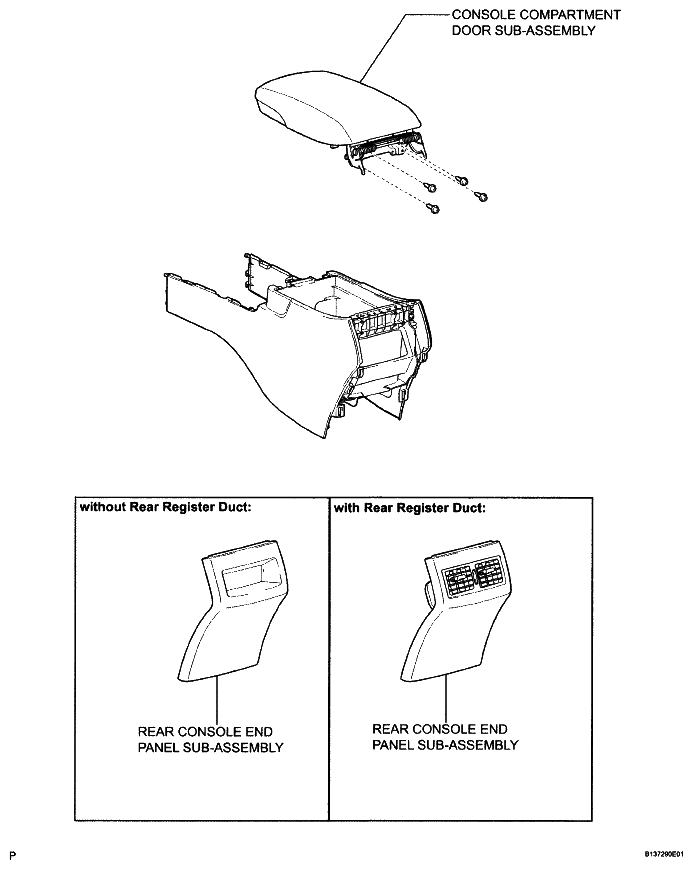

Fig 2: Identifying Rear Console Box Components (2 Of 2)
G04981379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
