Parts Location

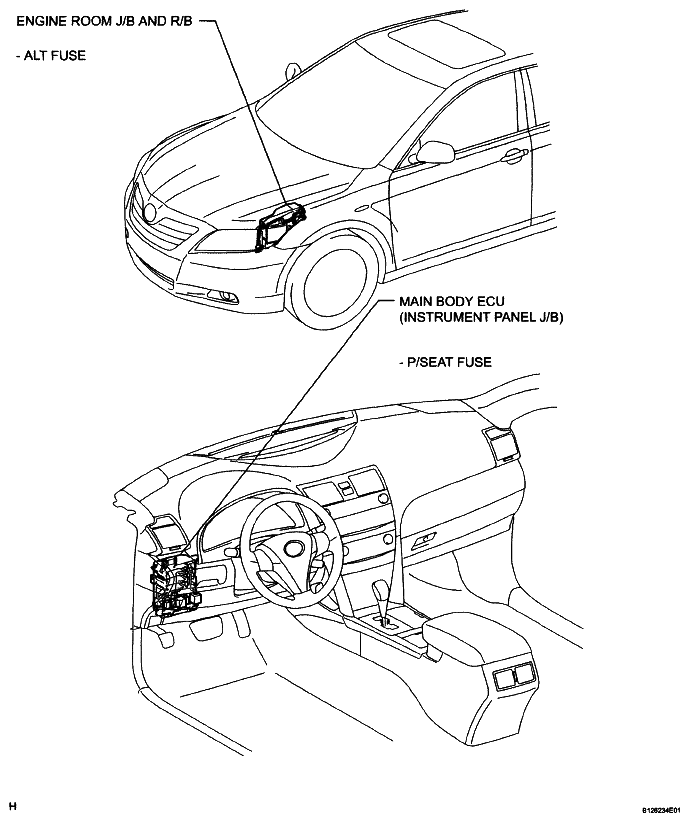

Fig 1: Identifying Front Power Seat Control System Part Location (1 Of 3)
G04981390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

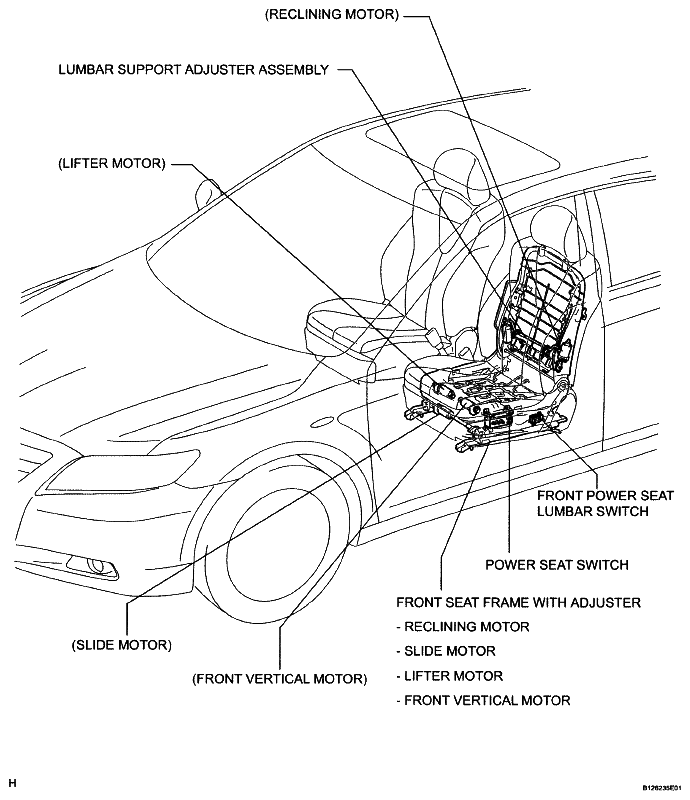

Fig 2: Identifying Front Power Seat Control System Part Location (2 Of 3)
G04981391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

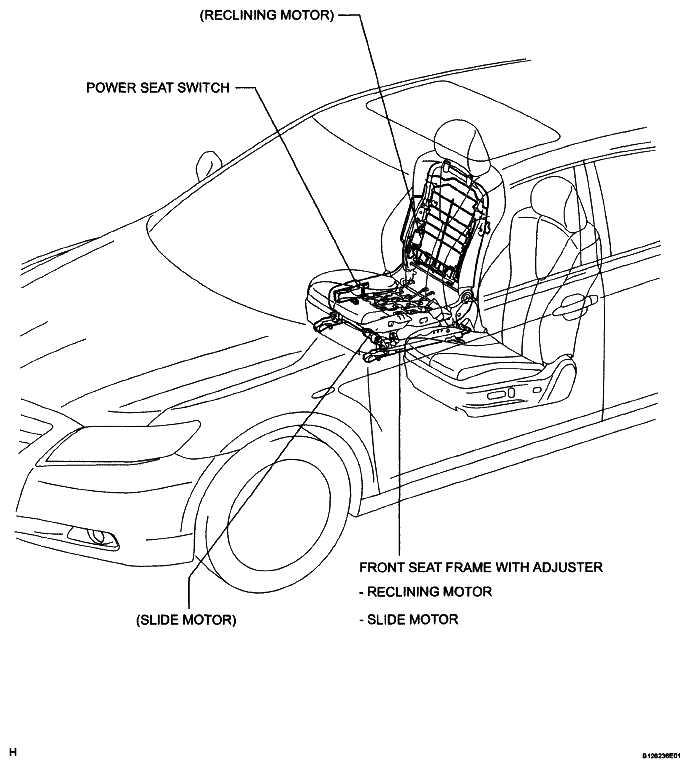

Fig 3: Identifying Front Power Seat Control System Part Location (3 Of 3)
G04981392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
