Home >> Toyota >> 2008 >> Camry Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Power Seat Switch >> Components

Power Seat Switch: Components

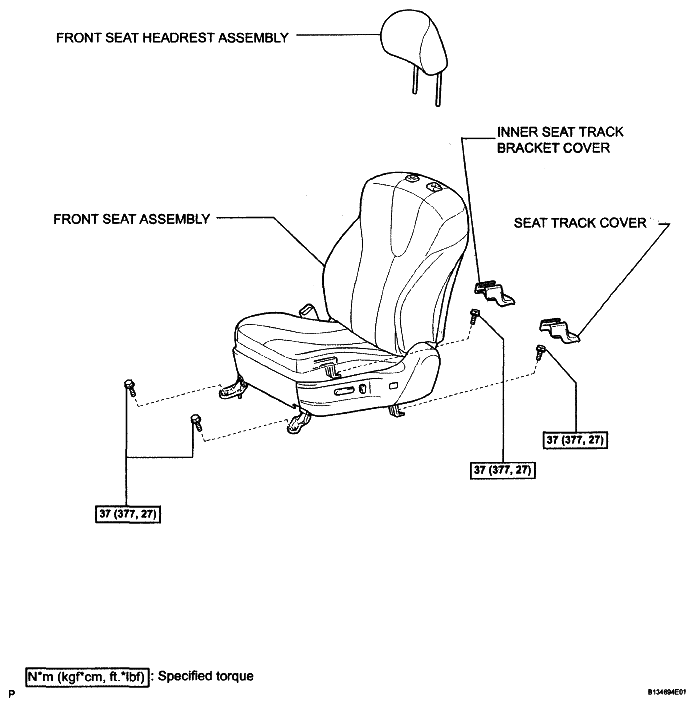

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)
G04981432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

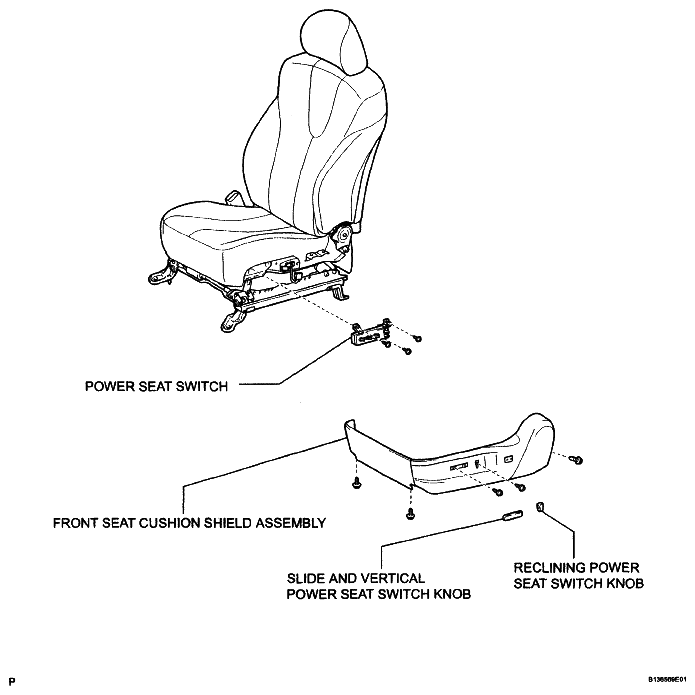

Fig 2: Identifying Power Seat Switch Components (2 Of 2)
G04981588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
