System Diagram

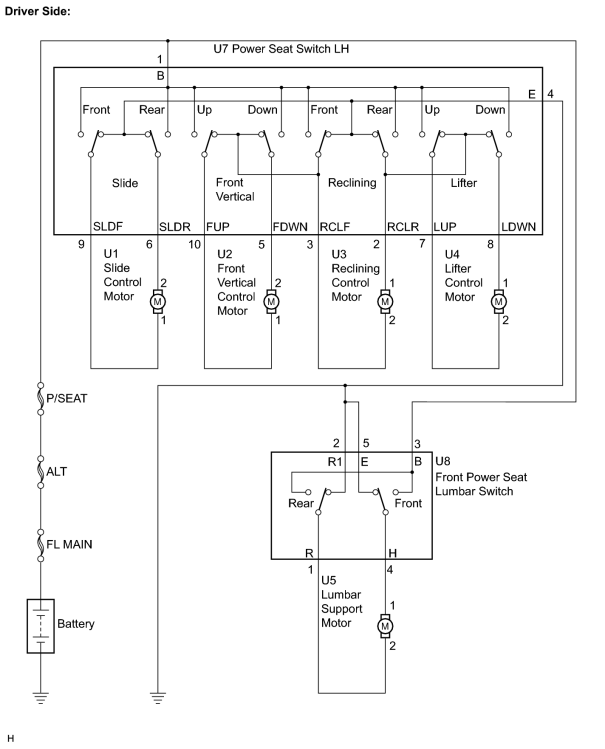

Fig 1: Front Power Seat Control System Diagram - Driver Side
G00455921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

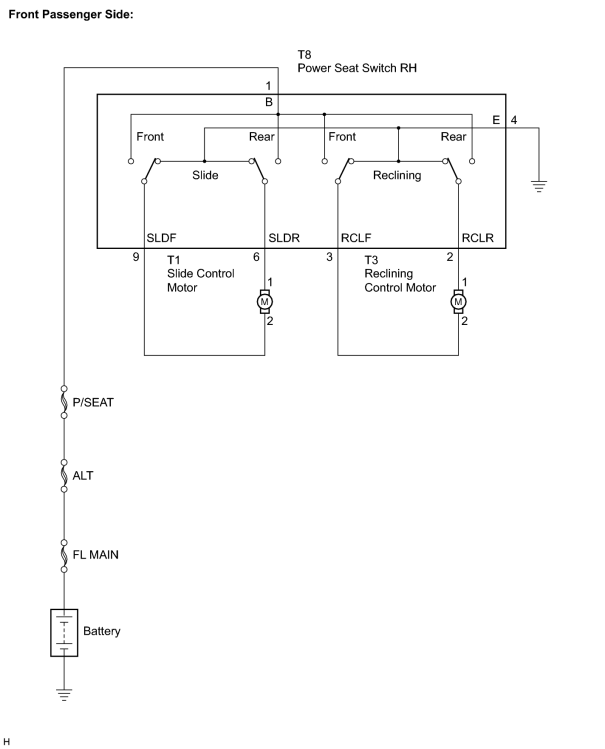

Fig 2: Front Power Seat Control System Diagram - Front Passenger Side
G00455922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
