Operation Check

  1. CHECK POWER SEAT FUNCTION
    1. Check the basic functions.
      1. Operate the power seat switches and check that the following functions work:
        • Sliding
        • Reclining
        • Lumbar support (Driver side only)
        • Front vertical (Driver side only)
        • Lifter (Driver side only)

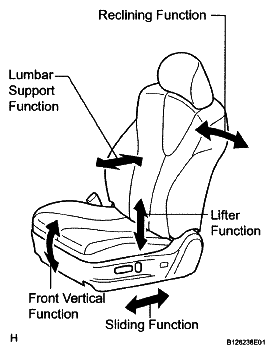

        Fig 1: Checking Power Seat Function
        G04981395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
