Roof Headlining: Components

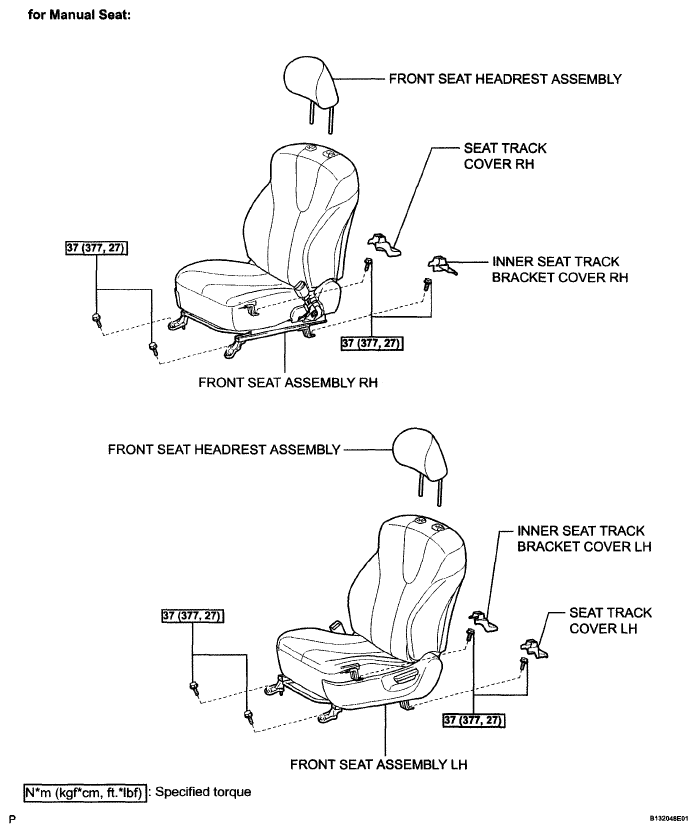

Fig 1: Exploded View Of Front Seat With Torque Specifications (Manual Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

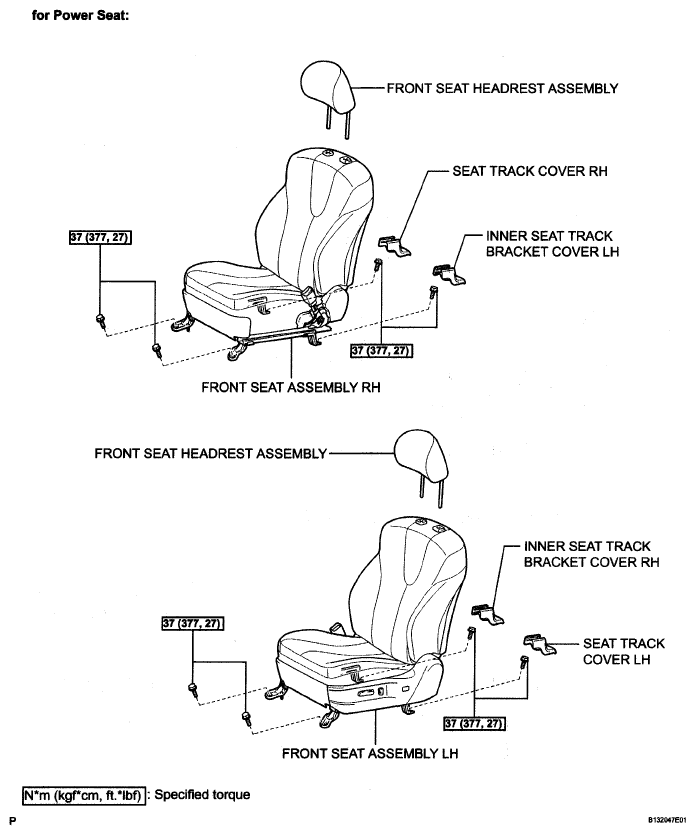

Fig 2: Exploded View Of Front Seat With Torque Specifications (Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Rear Seat With Torque Specifications (Fixed Seat Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

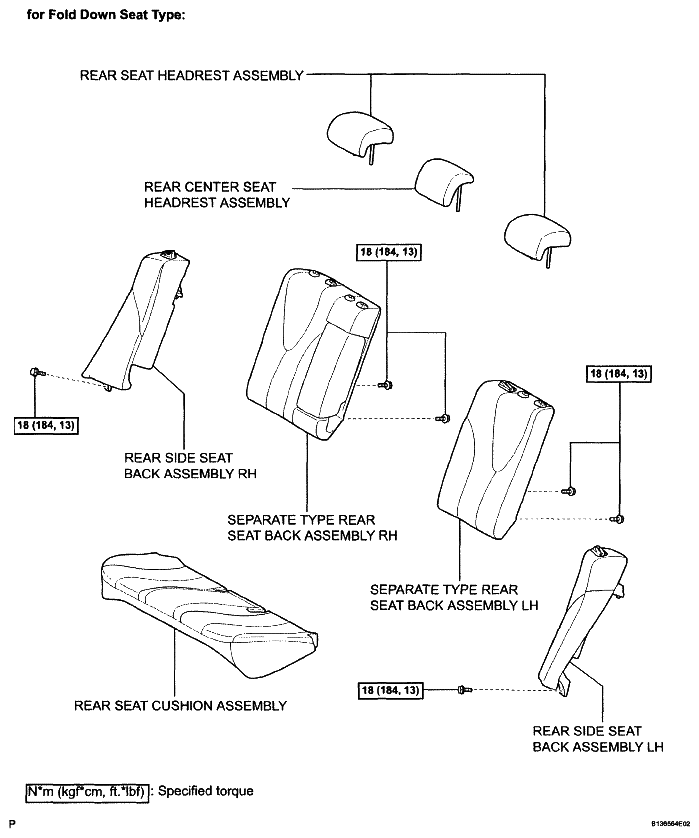

Fig 4: Exploded View Of Rear Seat With Torque Specifications (Fold Down Seat Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

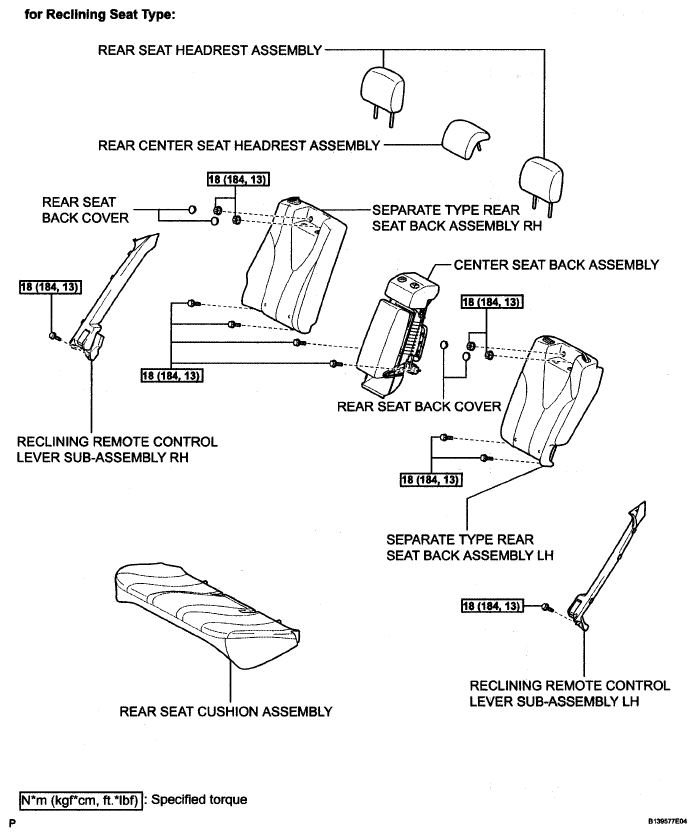

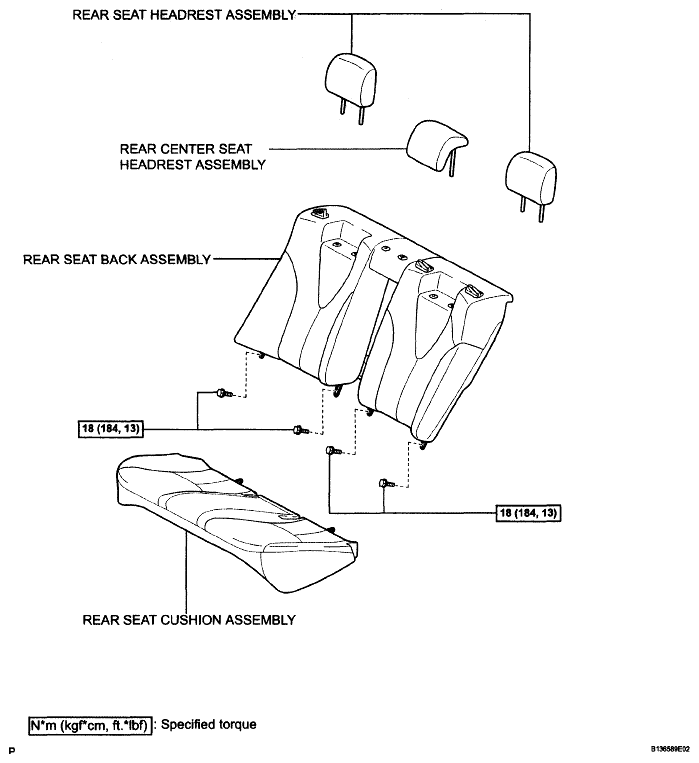

Fig 5: Exploded View Of Rear Seat With Torque Specifications (Reclining Seat Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

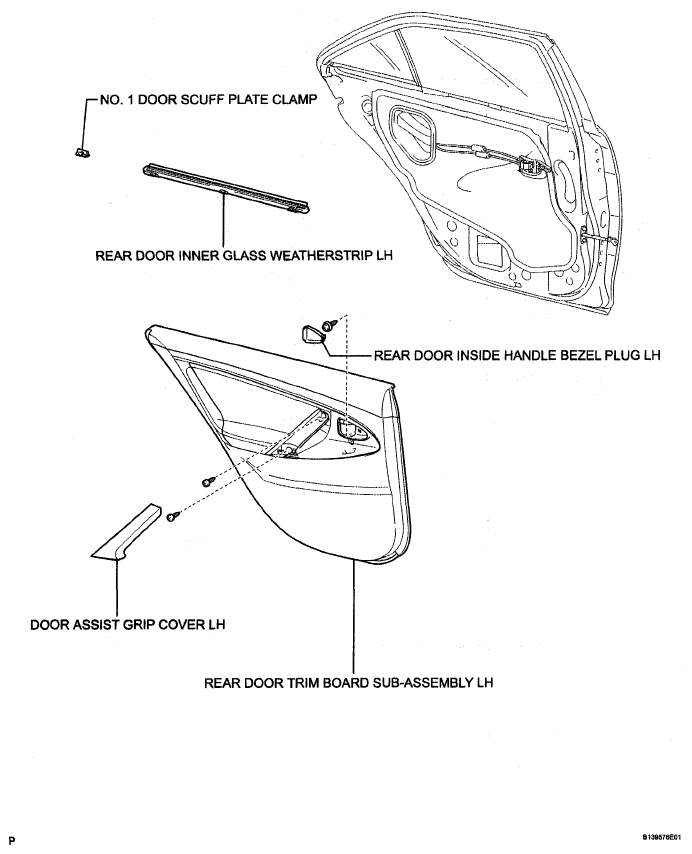

Fig 6: Identifying Rear Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

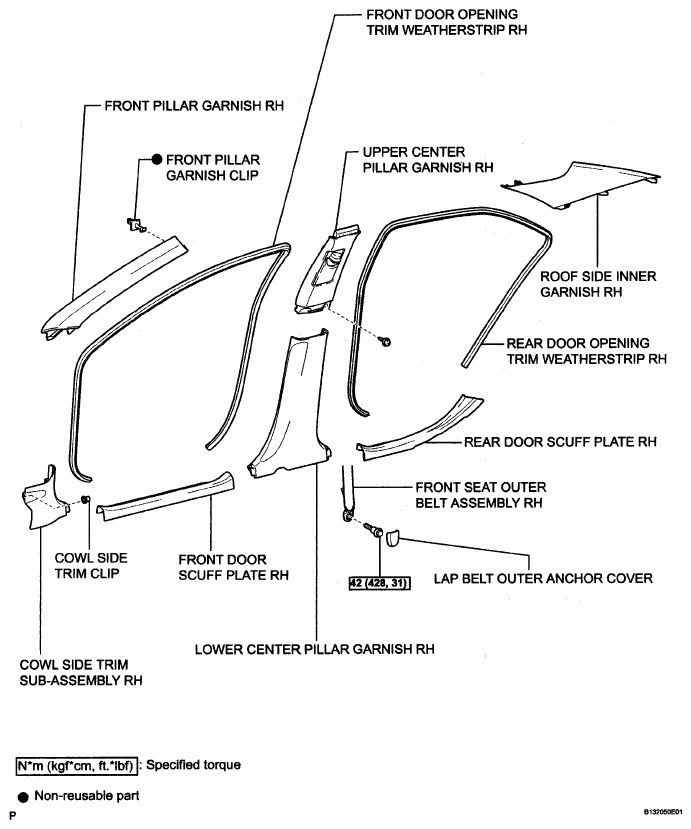

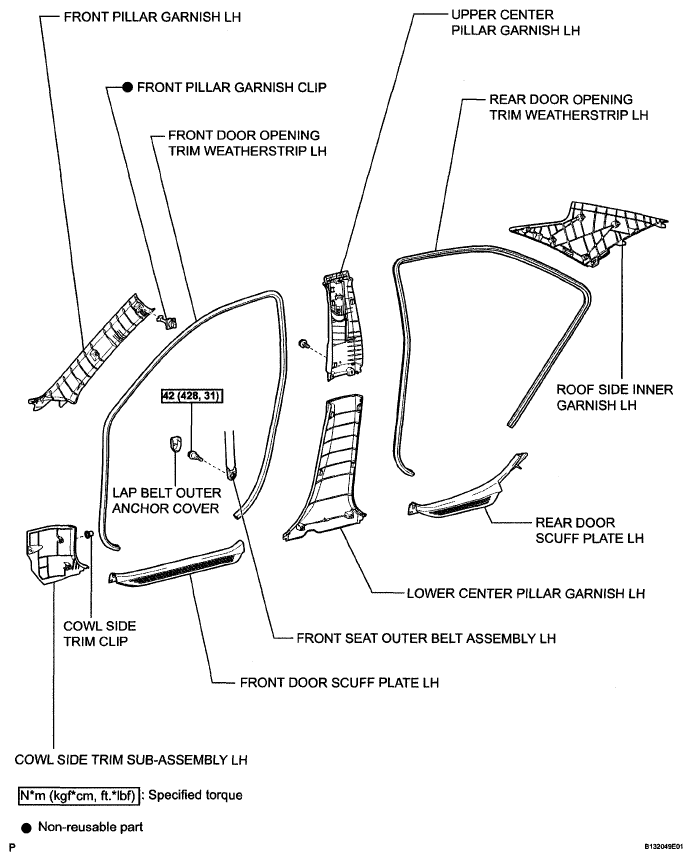

Fig 7: Front And Rear Door Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Front And Rear Door Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

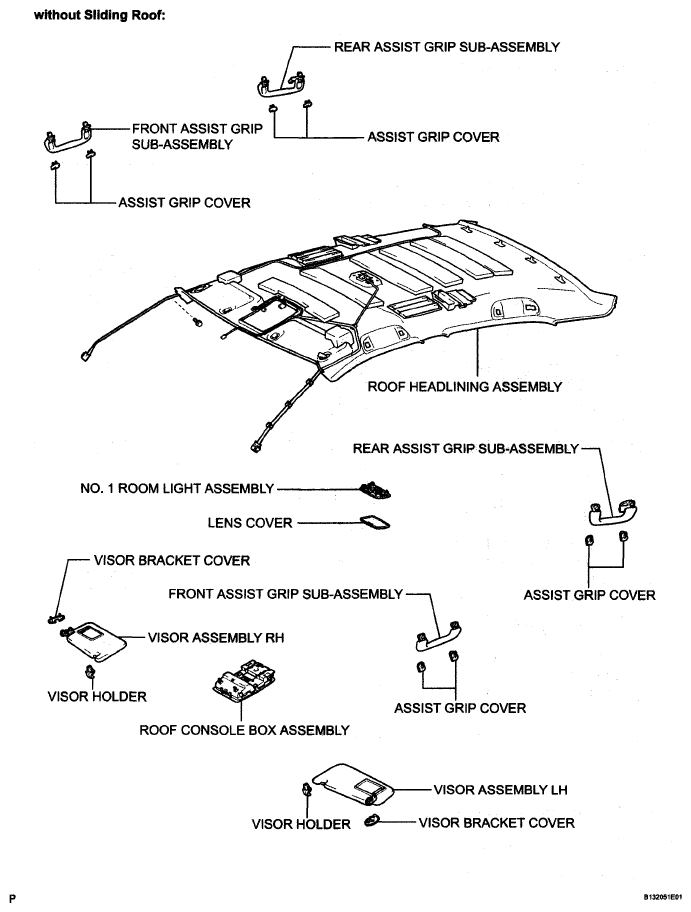

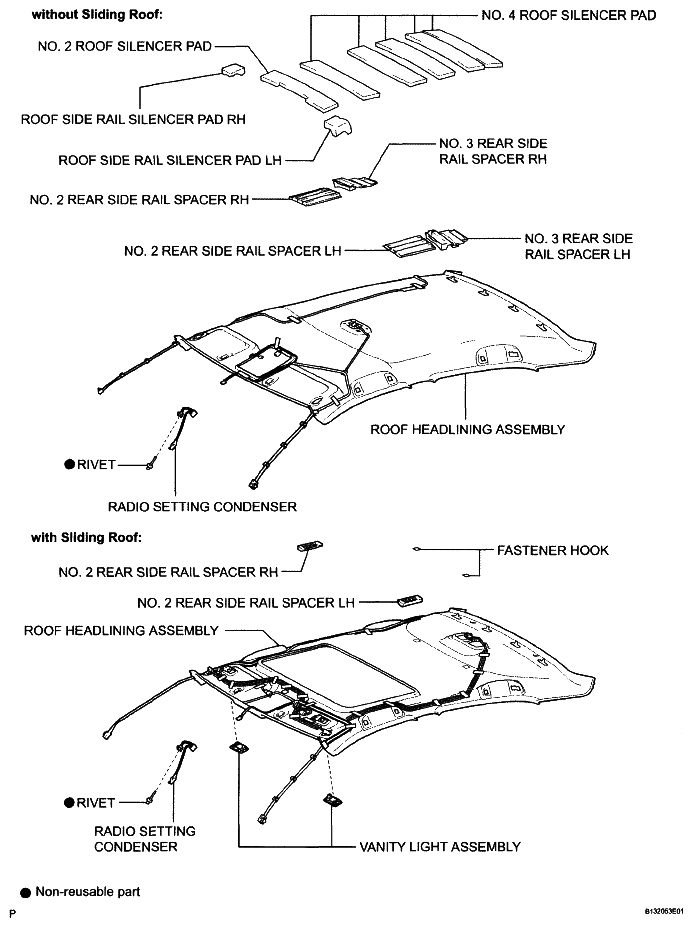

Fig 9: Identifying Roof Headlining With Associated Components (Without Sliding Roof)

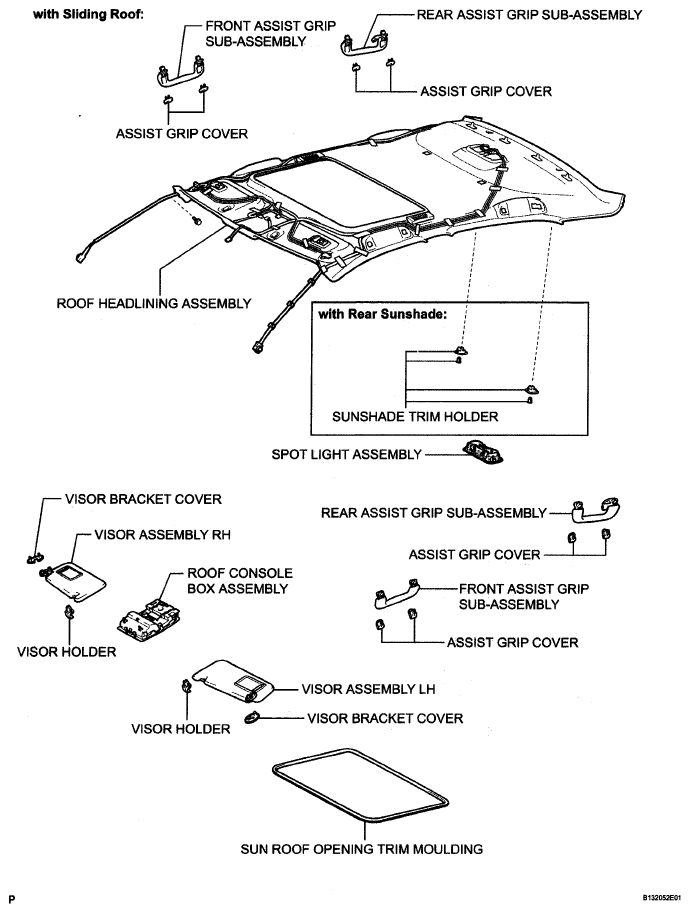

Fig 10: Identifying Roof Headlining With Associated Components (With Sliding Roof)

Fig 11: Identifying Roof Headlining With Associated Components (Without Sliding Roof)

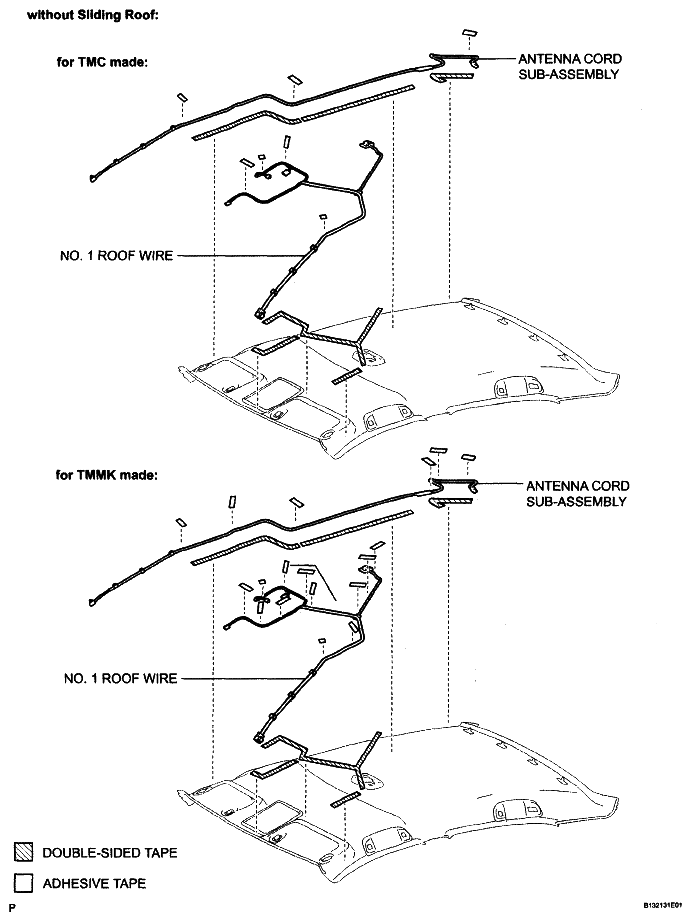

Fig 12: Identifying Antenna Cord Sub-Assembly And No.1 Roof Wire (Without Sliding Roof)

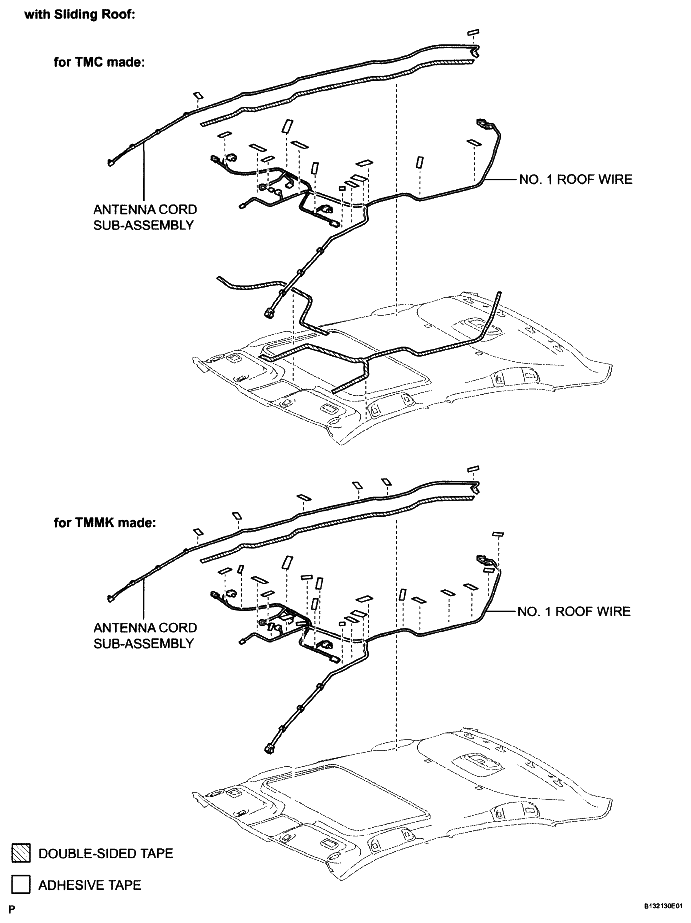

Fig 13: Identifying Antenna Cord Sub-Assembly And No.1 Roof Wire (With Sliding Roof)
