Rear Sunshade Assembly: Components
Fig 1: Rear Sunshade Assembly With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Sunshade Assembly With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

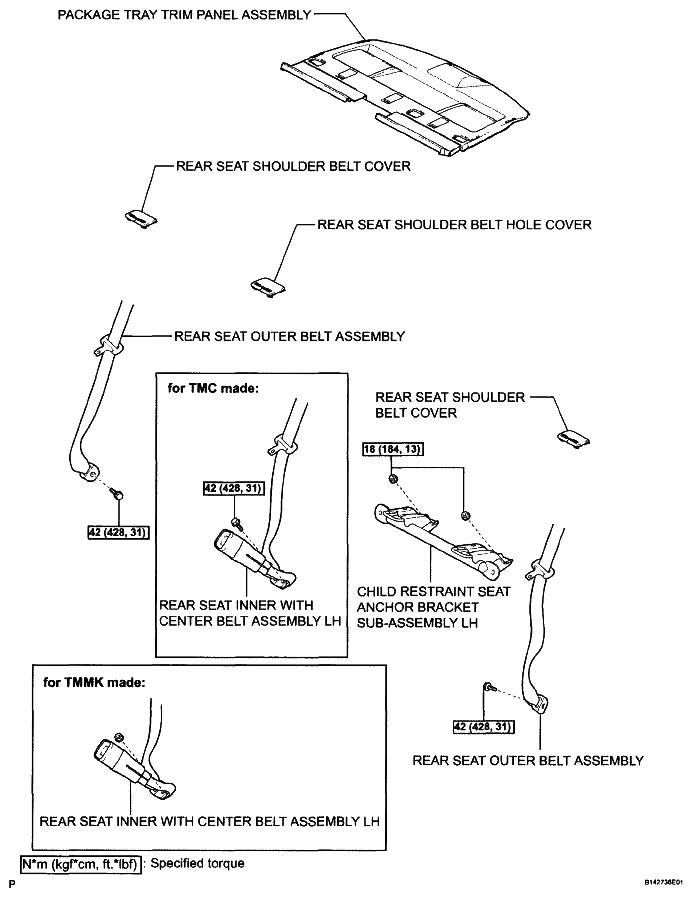

Fig 3: Rear Sunshade Assembly With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

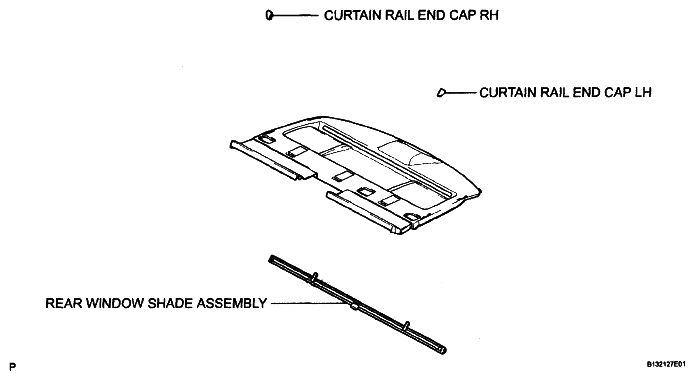

Fig 4: Identifying Rear Sunshade Assembly (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
