Vehicle Lift And Support Locations

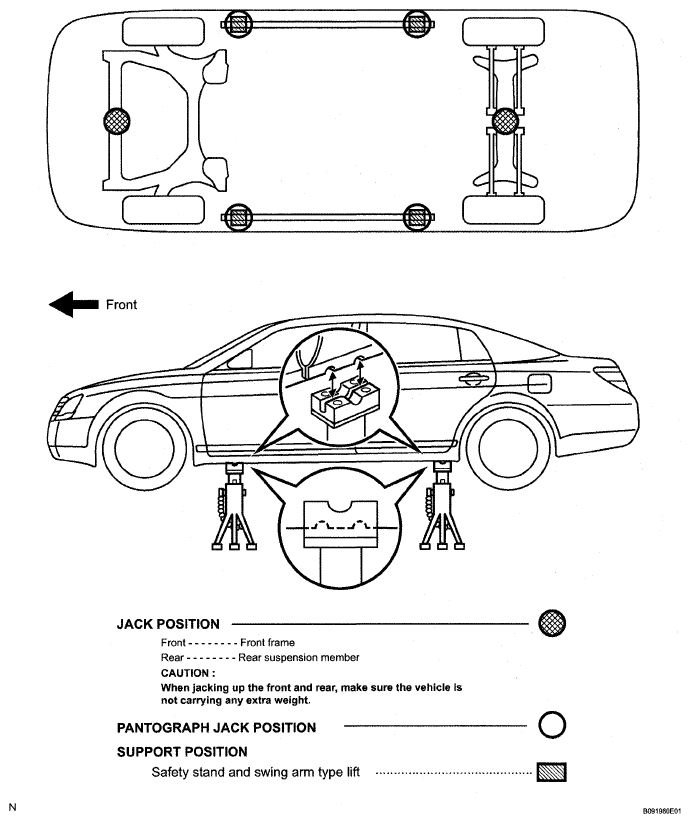

Fig 1: Identifying Vehicle Lift And Support Locations
G04995770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

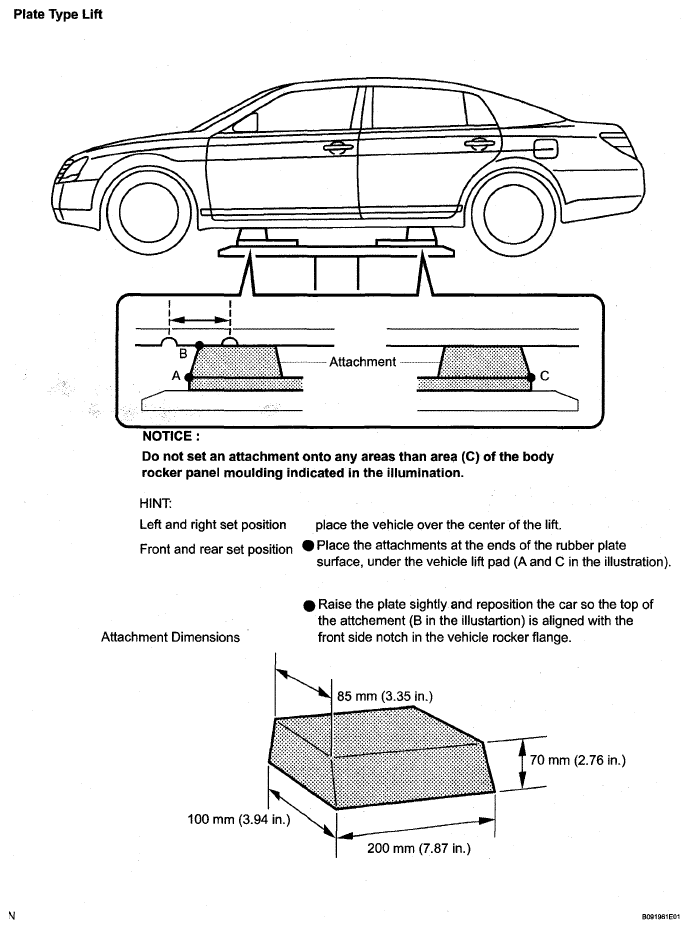

Fig 2: Identifying Vehicle Lift And Support Locations - Plate Type Lift
G04995771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
