Fuel Pump Control Circuit: Wiring Diagram

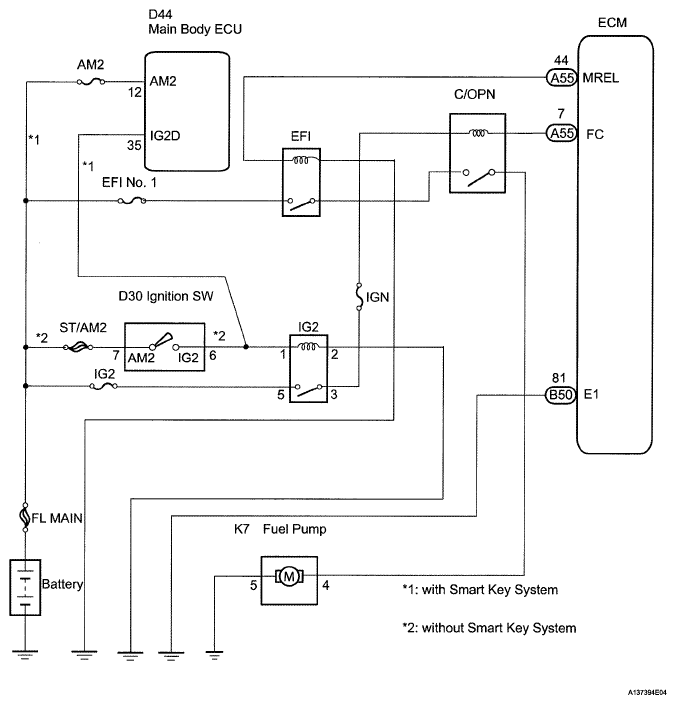

Fig 1: Fuel Pump Control Circuit - Wiring Diagram

G05404756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
