Audio System with 9 Speaker: Notes

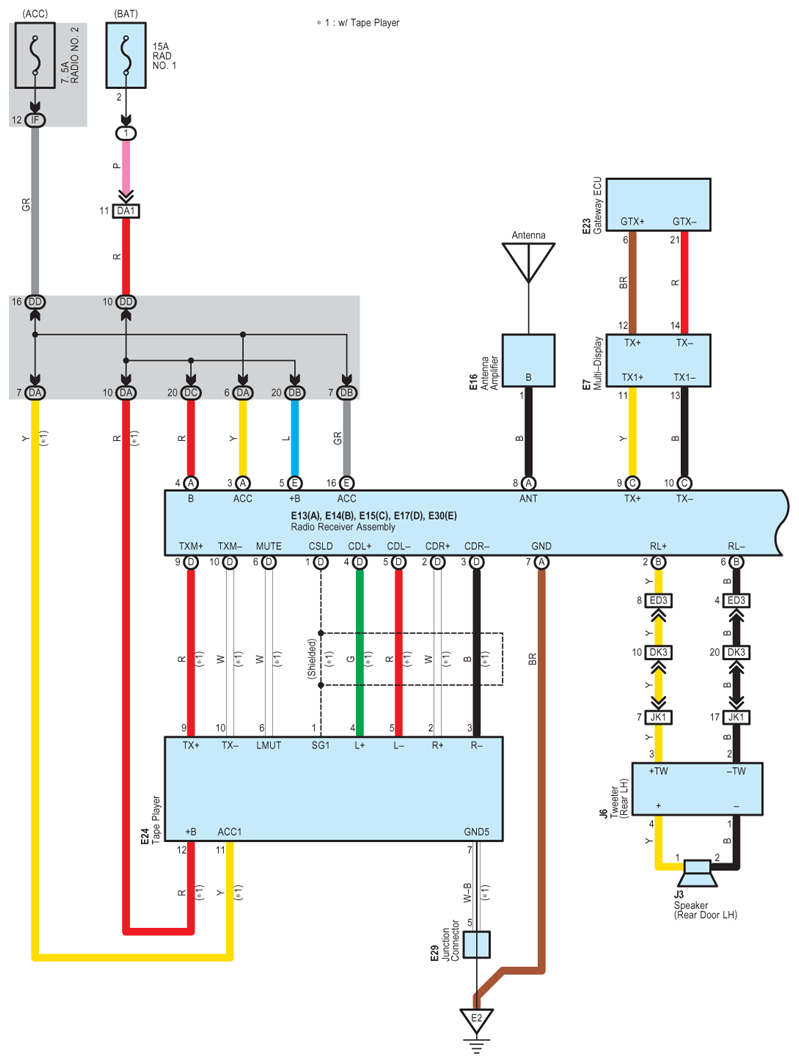

Fig 1: Audio System With 9 Speaker - Circuit Diagram (1 Of 4)
G07616622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

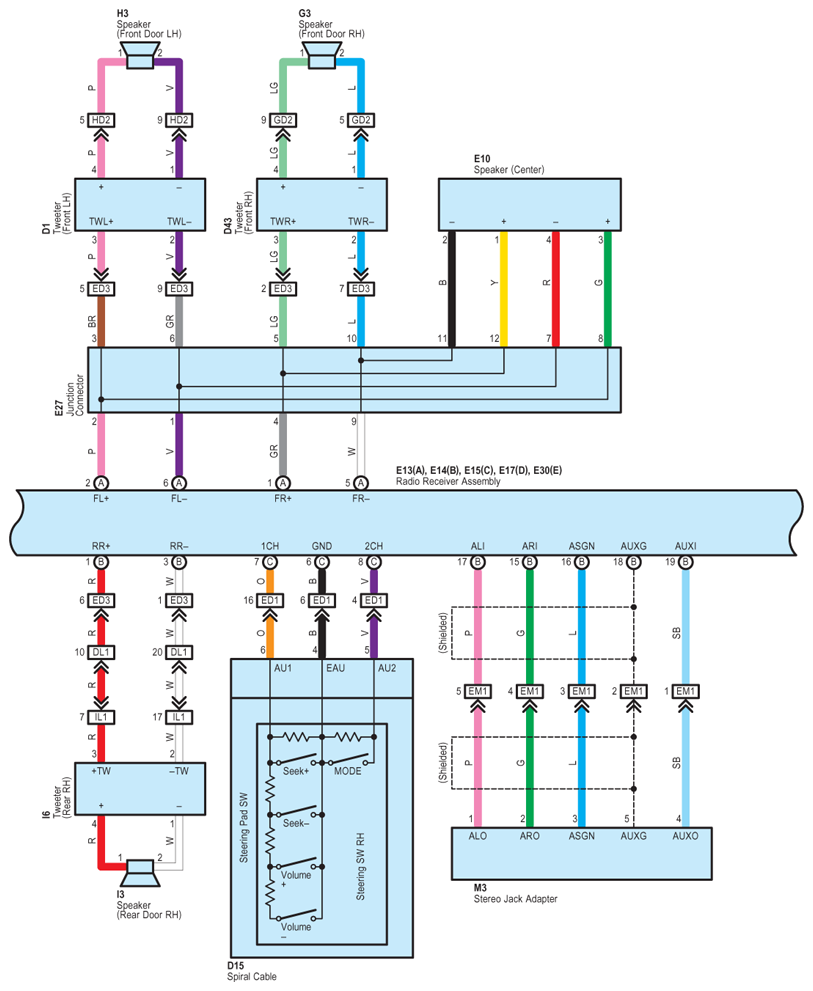

Fig 2: Audio System With 9 Speaker - Circuit Diagram (2 Of 4)
G07616623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

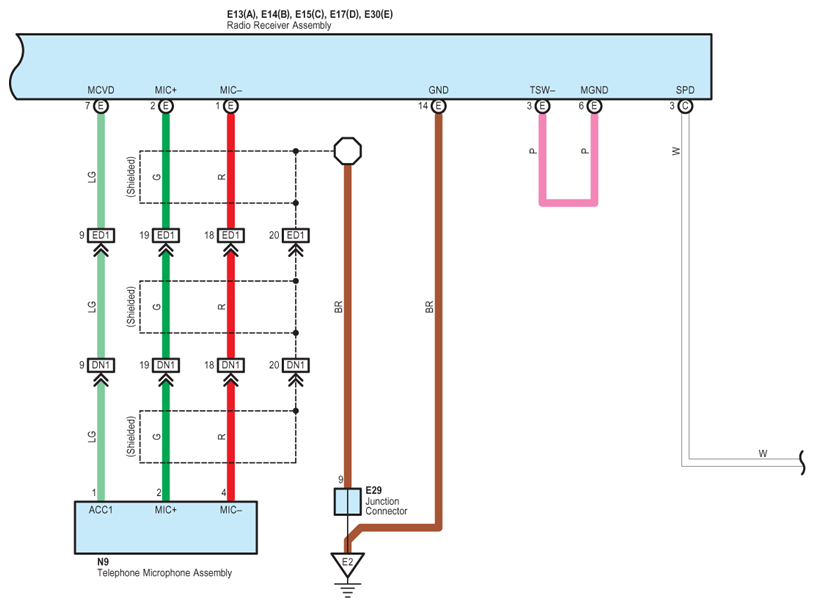

Fig 3: Audio System With 9 Speaker - Circuit Diagram (3 Of 4)
G07616624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Audio System With 9 Speaker - Circuit Diagram (4 Of 4)
G07616625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
