Rear Axle Carrier: Components

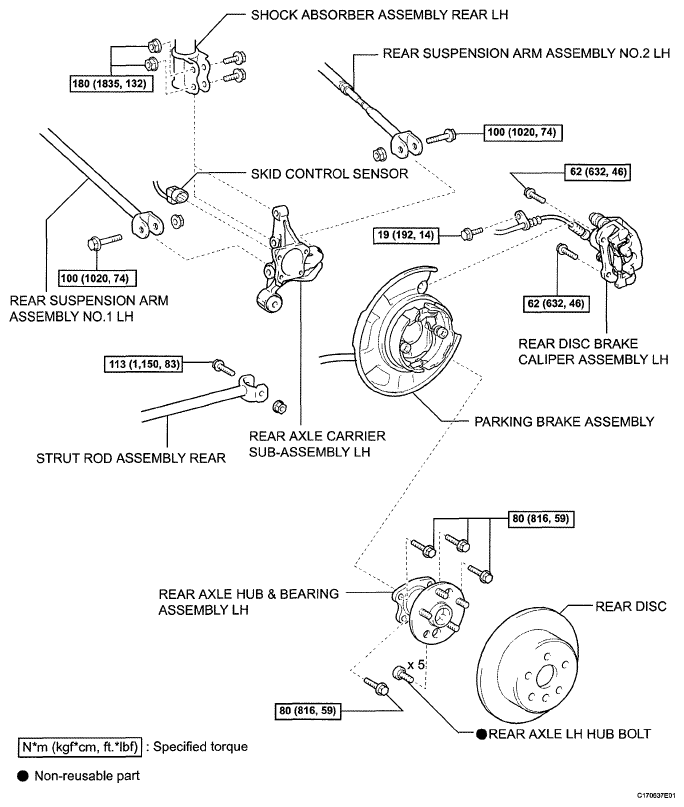

Fig 1: Rear Axle Carrier Replacement Components With Torque Specifications
G05406381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
