Skid Control Buzzer Circuit: Wiring Diagram

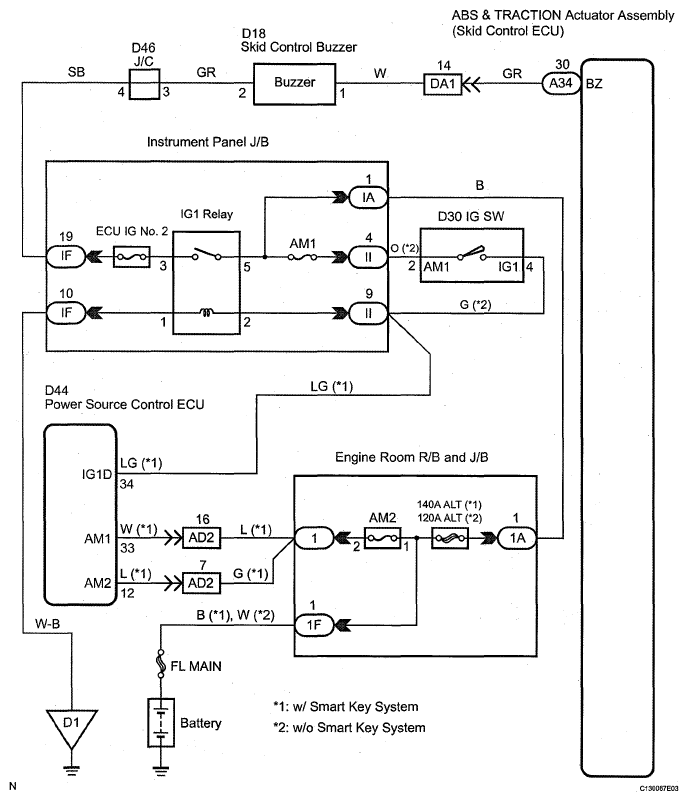

Fig 1: Skid Control Buzzer Circuit - Wiring Diagram
G05406758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
