TS and CG Terminal Circuit: Wiring Diagram

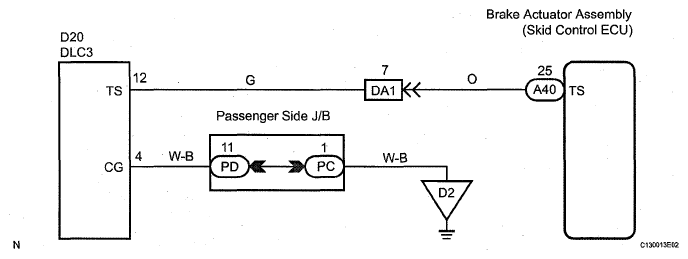

Fig 1: TS And CG Terminal Circuit - Wiring Diagram

G05406654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
