Parts Location

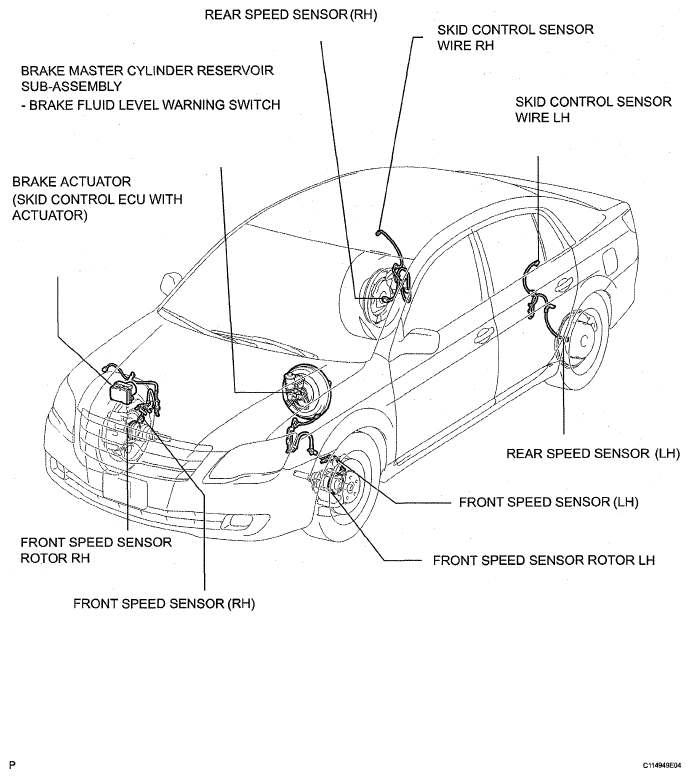

Fig 1: Identifying Anti-Lock Brake System Parts Location (1 Of 2)
G05406584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

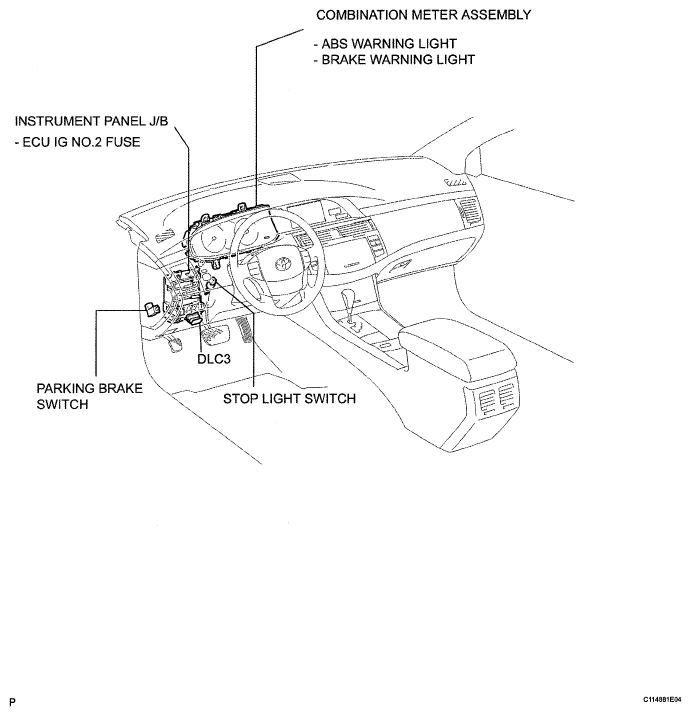

Fig 2: Identifying Anti-Lock Brake System Parts Location (2 Of 2)
G05406585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
