Laser Sensor: Components

Fig 1: Laser Sensor Replacement Components With Torque Specifications (1 Of 2)
G05407361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

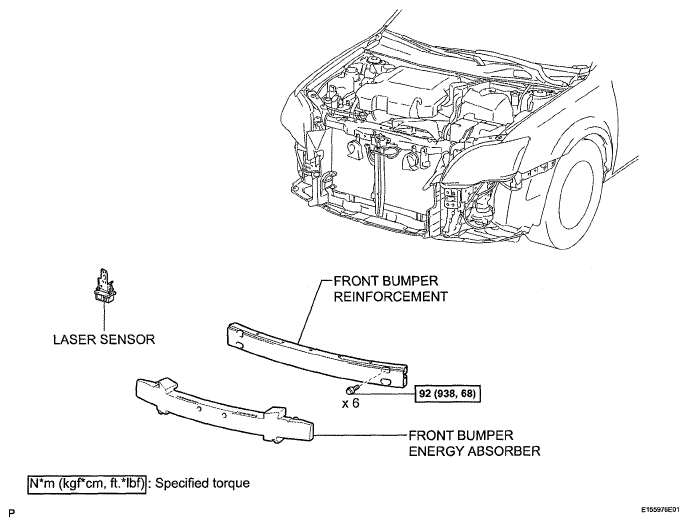

Fig 2: Laser Sensor Replacement Components With Torque Specifications (2 Of 2)
G05407362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
