Moon Roof System: Notes

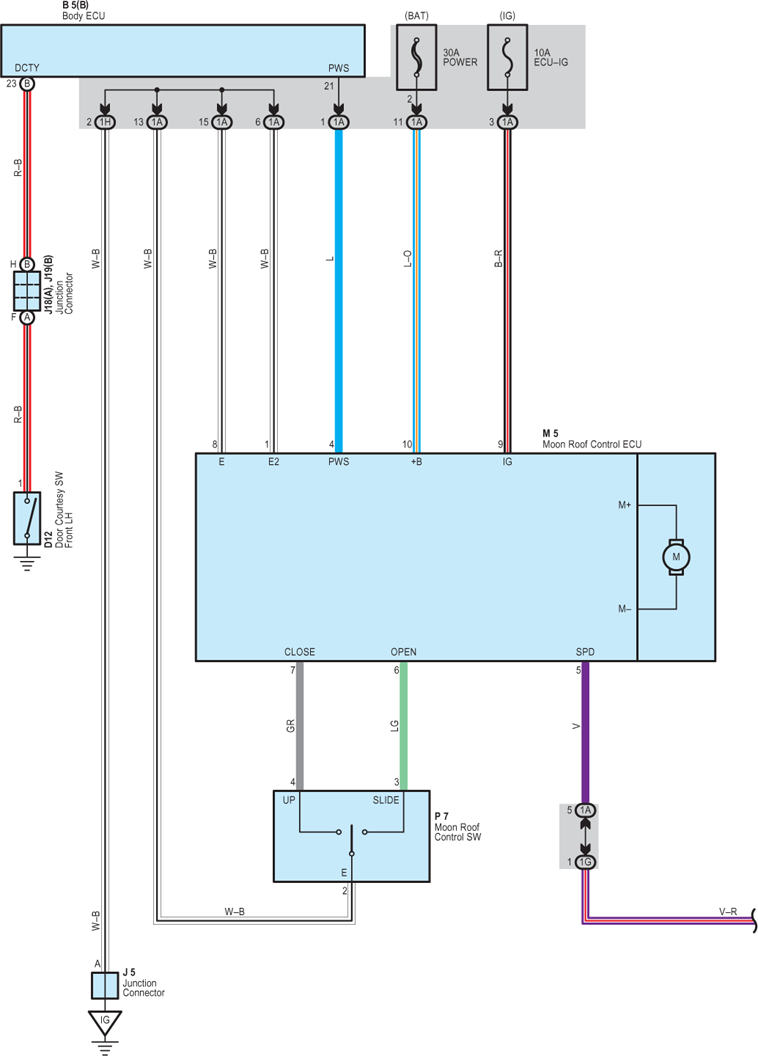

Fig 1: Moon Roof - Circuit Diagram (1 Of 2)
G07623441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Moon Roof - Circuit Diagram (2 Of 2)
G07623442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
