Interior Light System: Notes

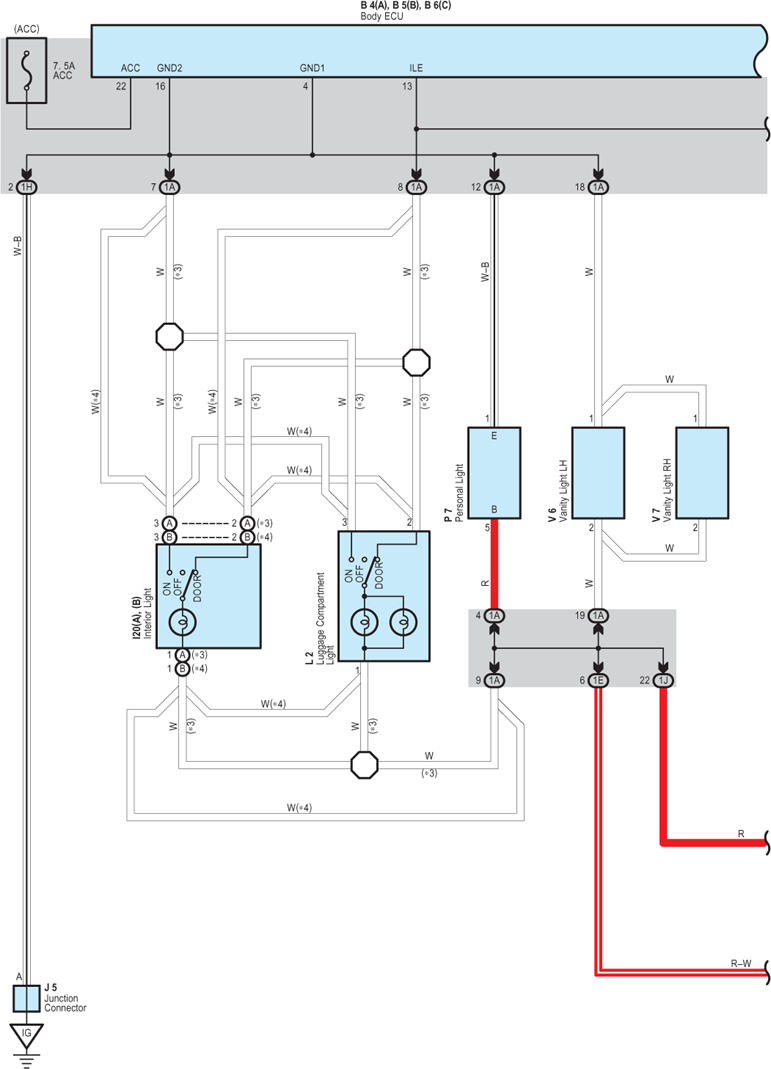

Fig 1: Interior Light - Circuit Diagram (1 Of 5)

G07623353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

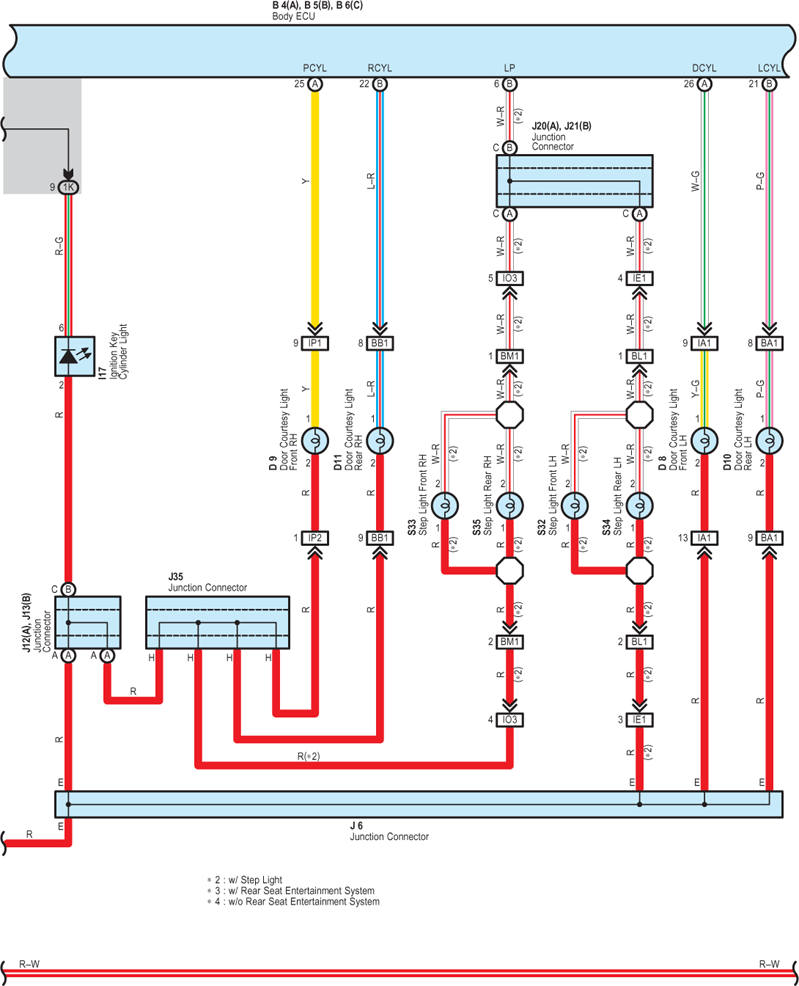

Fig 2: Interior Light - Circuit Diagram (2 Of 5)

G07623354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

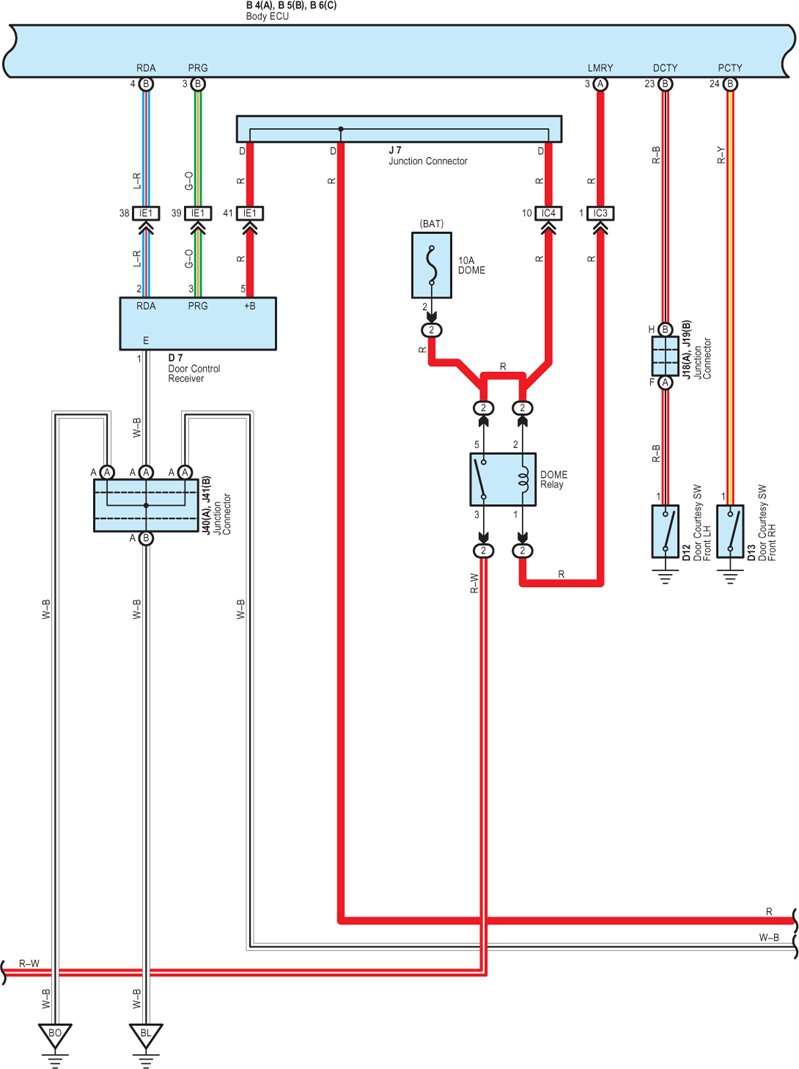

Fig 3: Interior Light - Circuit Diagram (3 Of 5)

G07623355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

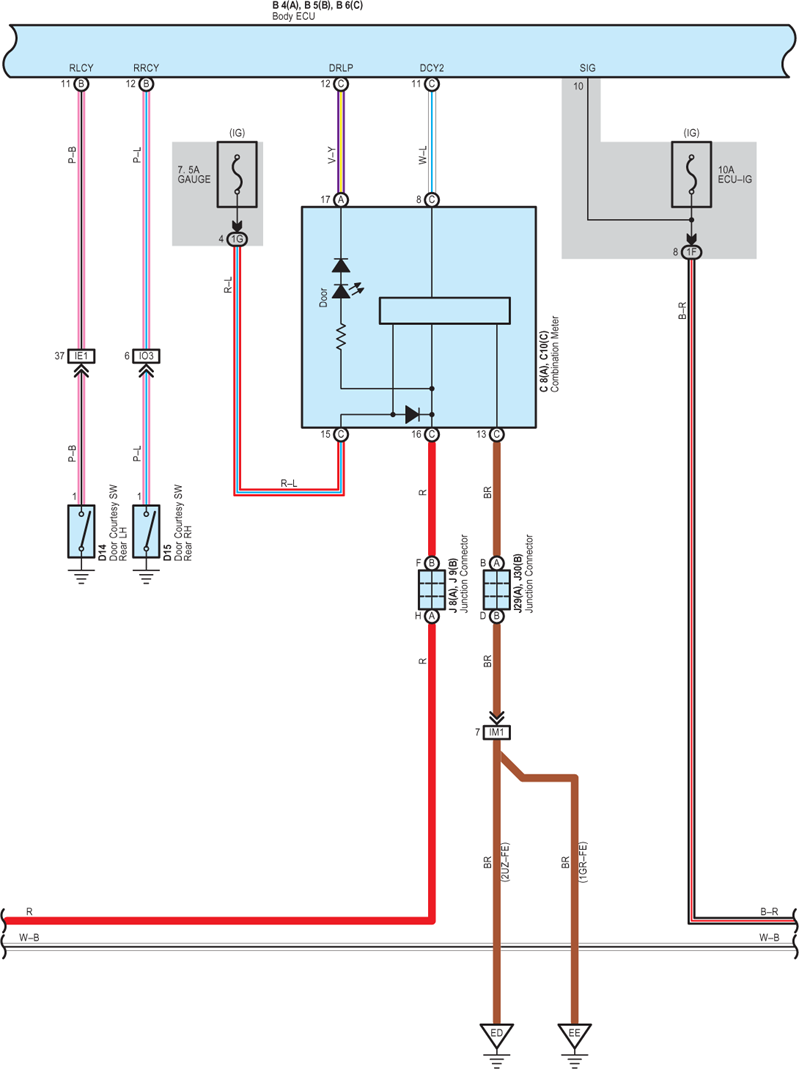

Fig 4: Interior Light - Circuit Diagram (4 Of 5)

G07623356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

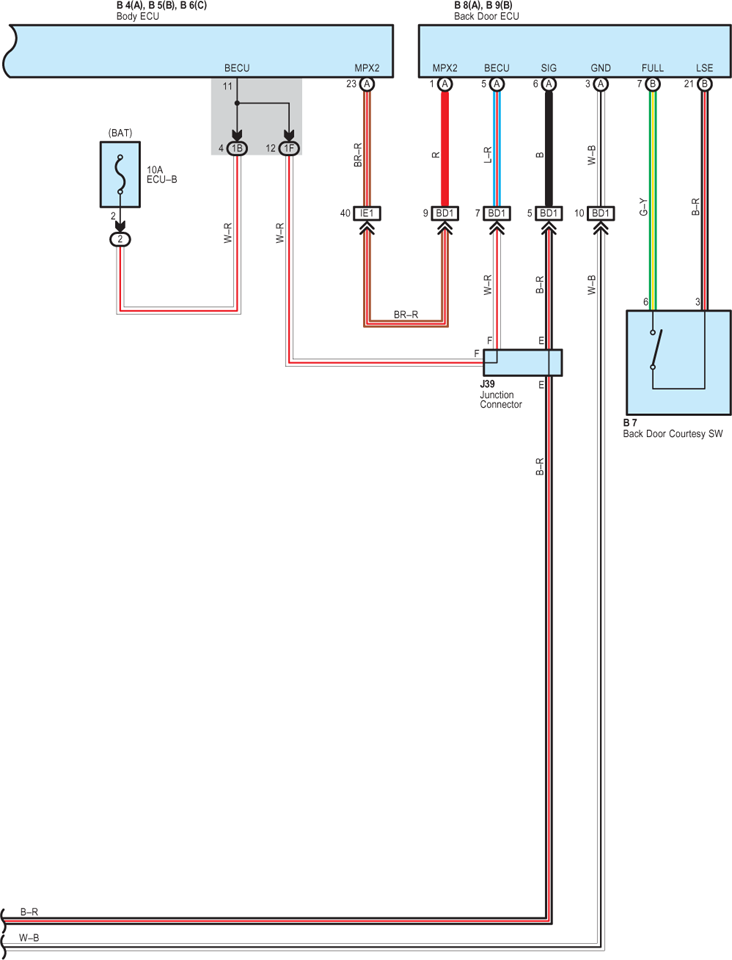

Fig 5: Interior Light - Circuit Diagram (5 Of 5)

G07623357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
